YG041JG80150-R-WL-DM

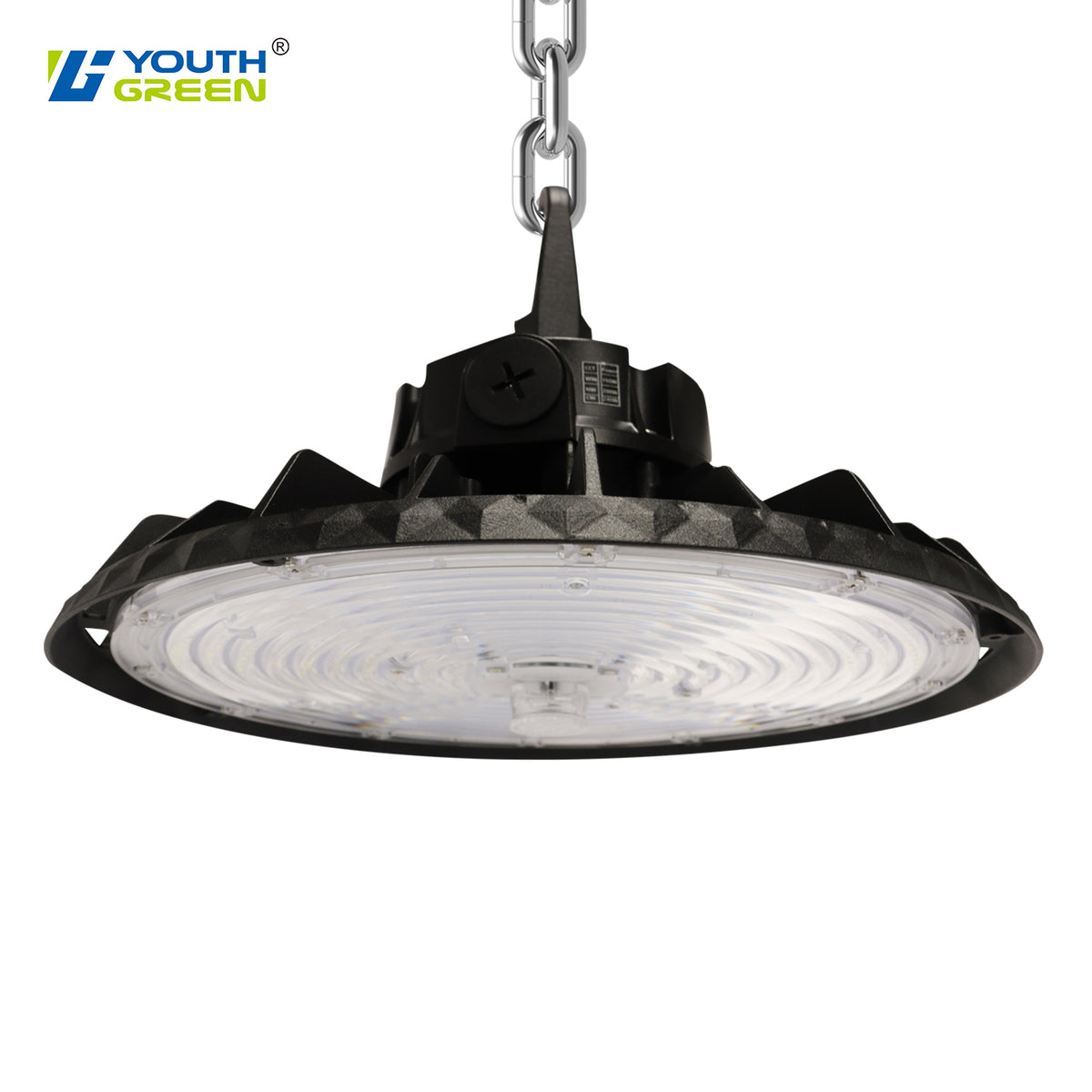

Product Description: YG041 Series Ultra-High Efficacy Tunable Wattage LED High Bay / Industrial Luminaires (Circlighting)

The Circlighting YG041 Series LED Luminaires are a cutting-edge range of ultra-high efficacy, robust lighting solutions designed for demanding industrial, commercial, and large-area applications. These high-performance fixtures boast an exceptional luminous efficacy of over 150 lumens per watt, delivering immense brightness while dramatically reducing energy consumption. With field-selectable wattage, multiple beam angle options, selectable color temperatures, and advanced wireless control with dimming, the YG041 series offers unparalleled flexibility and efficiency for high-ceiling environments like warehouses, factories, and sports facilities.

Available Models & Specifications:

• YG041JG80150-R-WL-DM:

  • Power (Tunable Wattage): 150W / 120W / 90W (Field-selectable)

  • Lumen Output (Approx.): >13,500LM (90W) to >22,500LM (150W) (calculated from >150LM/W)

  • Luminous Efficacy: >150LM/W

  • Beam Angles: 60° / 90° / 120° (Selectable/Optional)

  • CRI (Color Rendering Index): >80

  • IP Rating: IP65

  • Selectable CCT: 3000K (Warm White) / 4000K (Cool White) / 5000K (Daylight)

• YG041NG100200-R-WL-DM:

  • Power (Tunable Wattage): 200W / 150W / 120W (Field-selectable)

  • Lumen Output (Approx.): >18,000LM (120W) to >30,000LM (200W) (calculated from >150LM/W)

  • Luminous Efficacy: >150LM/W

  • Beam Angles: 60° / 90° / 120° (Selectable/Optional)

  • CRI: >80

  • IP Rating: IP65

  • Selectable CCT: 3000K / 4000K / 5000K (Consistent with series features)

• YG041OG150240-R-WL-DM:

  • Power (Tunable Wattage): 240W / 200W / 150W (Field-selectable)

  • Lumen Output (Approx.): >22,500LM (150W) to >36,000LM (240W) (calculated from >150LM/W)

  • Luminous Efficacy: >150LM/W

  • Beam Angles: 60° / 90° / 120° (Selectable/Optional)

  • CRI: >80

  • IP Rating: IP65

  • Selectable CCT: 3000K / 4000K / 5000K (Consistent with series features)

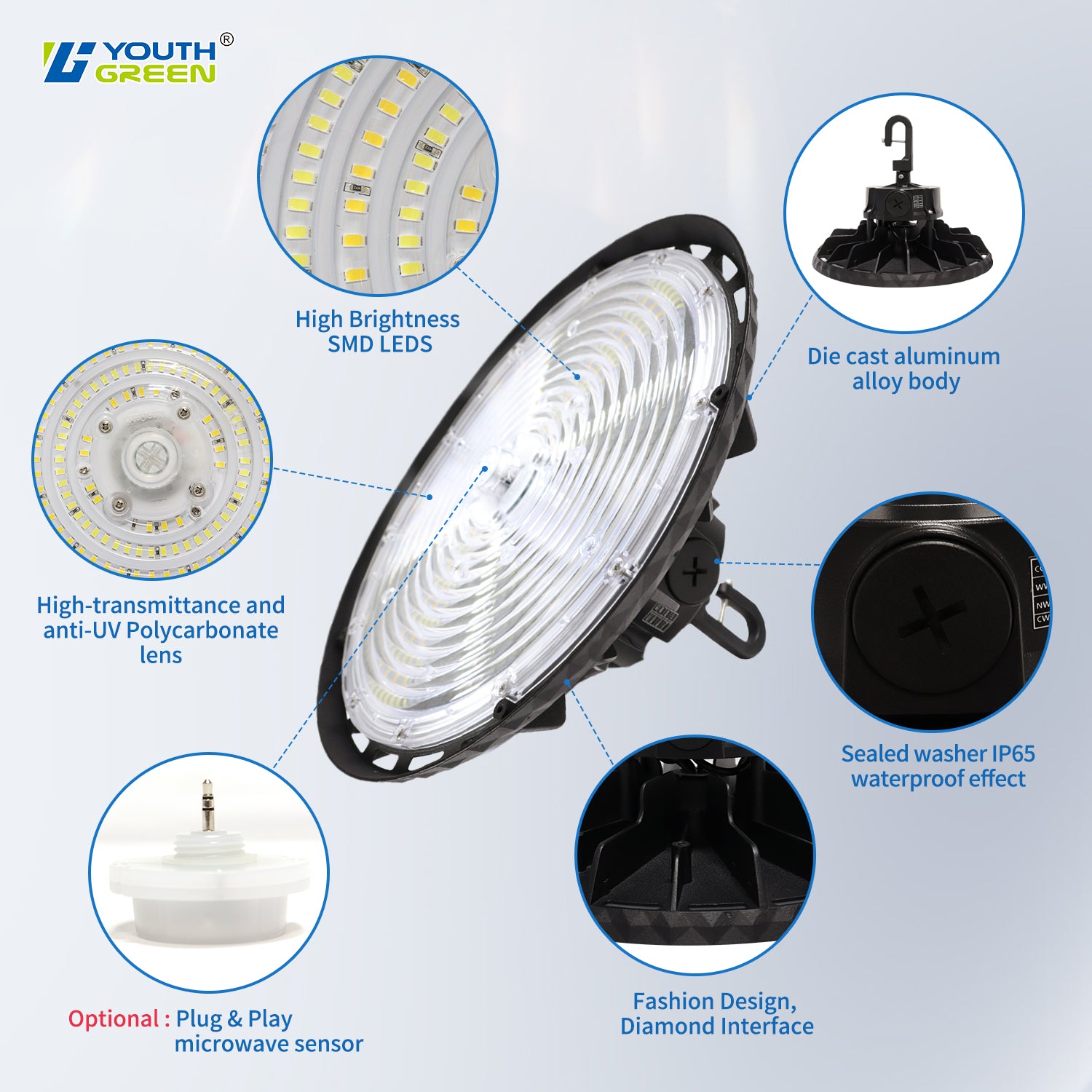

Key Features (Common to YG041 Series):

• Ultra-High Luminous Efficacy: Achieves over 150 lumens per watt, representing top-tier energy efficiency for significant operational cost savings.

• Field-Selectable Wattage: Offers three distinct power settings (e.g., 90W/120W/150W) on a single fixture, allowing precise on-site adjustment of light output to meet specific project requirements.

• Multiple Selectable Beam Angles: Provides flexibility with 60°, 90°, and 120° beam options, enabling optimized light distribution for various mounting heights and area coverage needs. (This typically means interchangeable lenses or an adjustable mechanism).

• Wireless Remote Control (R-WL): Allows for convenient and efficient management of lighting parameters (e.g., dimming, CCT selection) from a distance.

• Dimmable Functionality (DM): Supports precise brightness control, enabling energy conservation and dynamic lighting scenes.

• Wet Location & Dust-Tight (IP65): Ensures robust protection against dust ingress and resistance to powerful water jets, making them suitable for harsh industrial and outdoor covered environments.

• Multi-Selectable Color Temperature (CCT): Offers three versatile white light options (3000K Warm White, 4000K Cool White, and 5000K Daylight), providing adaptability for different visual tasks and ambient preferences.

• Good Color Rendering: A CRI of >80 ensures natural and accurate appearance of illuminated objects.

Benefits & Applications:

• Maximum Energy Savings: Drastically reduce electricity consumption and operating expenses due to industry-leading luminous efficacy.

• Unmatched Versatility & Control: Adapt light levels, beam spread, and color temperature on-site with advanced wireless and dimming capabilities, optimizing lighting for diverse tasks and environments.

• Robust & Durable: Built to withstand challenging conditions, ensuring long-term reliability and minimal maintenance.

• Superior Illumination: Delivers high lumen output and effective light distribution for large, high-ceiling spaces.

• Ideal for: Warehouses, manufacturing plants, gymnasiums, convention centers, logistics hubs, outdoor covered areas, and any large industrial or commercial space demanding high-performance, flexible, and efficient lighting.
