YG040bbT2040-S-5C-DM

Product Description: YG040 Series Enhanced Tunable Wattage & Multi-CCT LED Panel Lights (Circlighting)

The Circlighting YG040 Series LED Panel Lights represent an advanced generation of highly flexible and energy-efficient lighting solutions for modern commercial and institutional environments. These panels now offer an even broader range of field-selectable wattage options, providing unparalleled control over brightness and energy consumption. Combined with multi-selectable color temperatures, high luminous efficacy of 130 LM/W, and a wide 120° beam angle, the YG040 series delivers superior, uniform illumination. Integrated dimming functionality further enhances their adaptability, making them perfect for dynamic lighting needs in various interior designs.

Available Models & Specifications:

• YG040bbT2040-S-5C-DM:

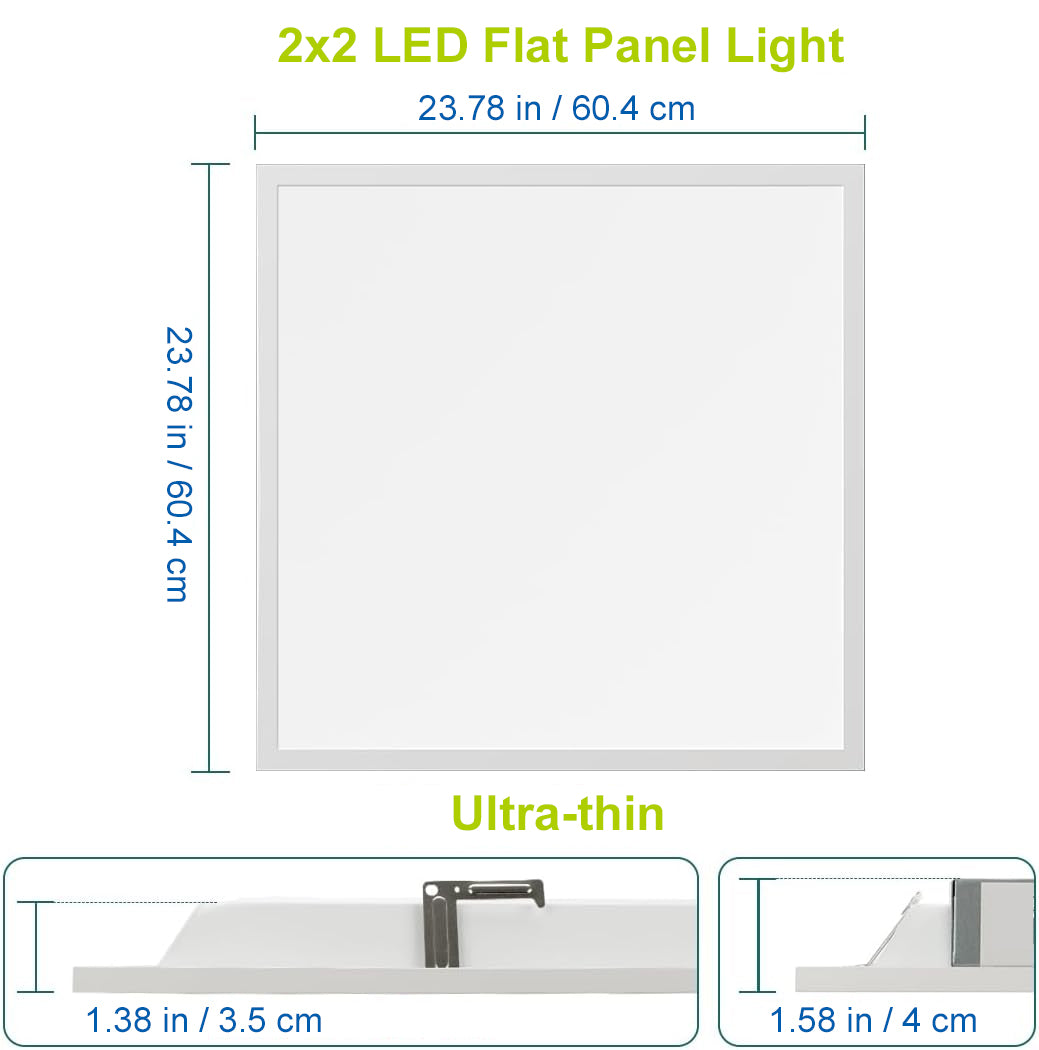

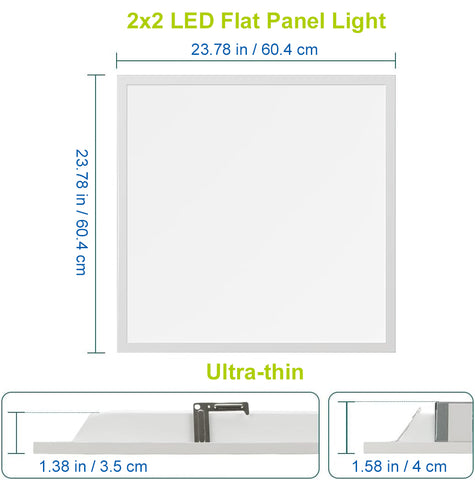

  • Dimensions: 2x2 ft (603mm x 603mm x 30mm)

  • Power (Tunable Wattage): 40W / 35W / 30W / 25W / 20W (5 Field-selectable options)

  • Lumen Output (Approx.): >2600LM (20W) to >5200LM (40W) (calculated from 130LM/W)

  • Luminous Efficacy: 130LM/W

  • Beam Angle: 120°

  • IP Rating: 44

  • Selectable CCT: 3000K / 3500K / 4000K / 5000K (4-selectable options)

  • Dimming: Dimmable (via integrated control)

• YG040adT2550-S-5C-DM:

  • Dimensions: 1x4 ft (1213mm x 303mm x 30mm)

  • Power (Tunable Wattage): 50W / 40W / 35W / 30W / 25W (5 Field-selectable options)

  • Lumen Output (Approx.): >3250LM (25W) to >6500LM (50W) (calculated from 130LM/W)

  • Luminous Efficacy: 130LM/W

  • Beam Angle: 120°

  • IP Rating: 44

  • Selectable CCT: 3000K / 3500K / 4000K / 5000K (4-selectable options, consistent with series)

  • Dimming: Dimmable (via integrated control)

• YG040bdT2560-S-5C-DM:

  • Dimensions: 2x4 ft (1213mm x 603mm x 30mm)

  • Power (Tunable Wattage): 60W / 50W / 40W / 30W / 25W (5 Field-selectable options)

  • Lumen Output (Approx.): >3250LM (25W) to >7800LM (60W) (calculated from 130LM/W)

  • Luminous Efficacy: 130LM/W

  • Beam Angle: 120°

  • IP Rating: 44

  • Selectable CCT: 3000K / 3500K / 4000K / 5000K (4-selectable options, consistent with series)

  • Dimming: Dimmable (via integrated control)

Key Features (Common to YG040 Series):

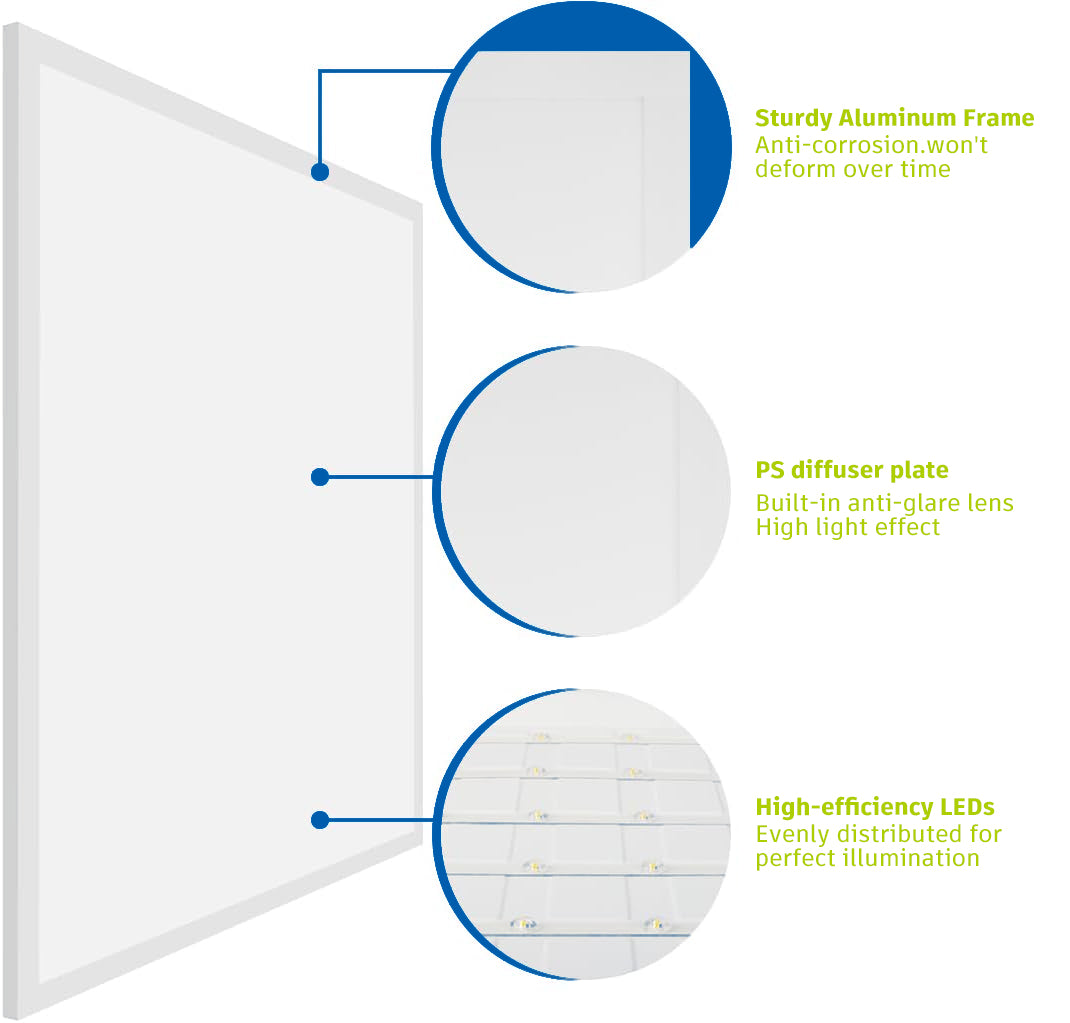

• Product Type: High-performance LED Panel Lights, designed for seamless integration into standard grid ceiling systems (2x2, 1x4, 2x4 ft sizes).

• LED Type: SMD LED, ensuring wide (120° beam angle) and exceptionally uniform light distribution across the illuminated area.

• Ultra-High Luminous Efficacy: Achieves an impressive 130 lumens per watt, setting a high standard for energy efficiency and reducing operational costs significantly.

• Expanded Field-Selectable Wattage: Offers five distinct power consumption settings, allowing unparalleled on-site customization of brightness levels to meet precise project requirements, building codes, and energy goals.

• Multi-Selectable Color Temperature (CCT): Provides four distinct white light options (3000K Warm White, 3500K Neutral White, 4000K Cool White, and 5000K Daylight), offering versatile ambiance control, typically adjusted via a convenient switch on the fixture or driver.

• Dimmable Functionality: Integrated dimming capabilities (likely 0-10V) provide precise control over light output, enhancing user comfort, energy savings, and compliance with lighting controls.

• Damp Location Suitable: An IP44 rating offers robust protection against solid objects larger than 1mm and splashing water, making them suitable for use in offices, classrooms, healthcare facilities, and other commercial interiors.

Benefits & Applications:

• Maximized Energy Savings: Top-tier efficacy and tunable wattage significantly reduce operational costs and contribute to sustainability initiatives.

• Unmatched Flexibility: Tailor light levels and color temperature on-site with fine precision, adapting to diverse tasks, user preferences, and dynamic space requirements.

• Superior Uniform Illumination: Provides consistent, glare-free, and comfortable light distribution across large areas, enhancing productivity and visual comfort.

• Simplified Stock & Installation: Reduces the need for multiple SKUs and simplifies installation by allowing on-site power and CCT adjustments.

• Versatile Use: Ideal for general ambient lighting in commercial offices, educational institutions, healthcare facilities, retail environments, conference rooms, corridors, and other spaces requiring high-quality, adaptable, and efficient illumination.
