YG040bbT2035-S-3C-DM

Product Description: YG040 Series Tunable Wattage & Multi-CCT LED Panel Lights (Circlighting)

The Circlighting YG040 Series LED Panel Lights offer advanced and highly flexible illumination solutions for a wide range of commercial and institutional settings. Designed with field-selectable wattage options and multiple color temperature choices, these panels provide exceptional control over light levels and ambiance. Boasting an impressive 130 lumens per watt efficacy and a broad 120° beam angle, the YG040 series delivers bright, uniform light while maximizing energy savings. Integrated dimming functionality further enhances their adaptability for various modern interior designs.

Available Models & Specifications:

• YG040bbT2035-S-3C-DM:

  • Dimensions: 2x2 ft (603mm x 603mm x 30mm)

  • Power (Tunable Wattage): 40W / 35W / 30W (Field-selectable)

  • Lumen Output (Approx.): >3900LM (30W) to >5200LM (40W) (calculated from 130LM/W)

  • Luminous Efficacy: 130LM/W

  • Beam Angle: 120°

  • IP Rating: 44

  • Selectable CCT: 3000K / 3500K / 4000K / 5000K (4-selectable options)

  • Dimming: Dimmable (via integrated control)

• YG040adT3040-S-3C-DM:

  • Dimensions: 1x4 ft (1213mm x 303mm x 30mm)

  • Power (Tunable Wattage): 40W / 35W / 30W (Field-selectable)

  • Lumen Output (Approx.): >3900LM (30W) to >5200LM (40W) (calculated from 130LM/W)

  • Luminous Efficacy: 130LM/W

  • Beam Angle: 120°

  • IP Rating: 44

  • Selectable CCT: 3000K / 3500K / 4000K / 5000K (4-selectable options, consistent with series)

  • Dimming: Dimmable (via integrated control)

• YG040bdT4050-S-3C-DM:

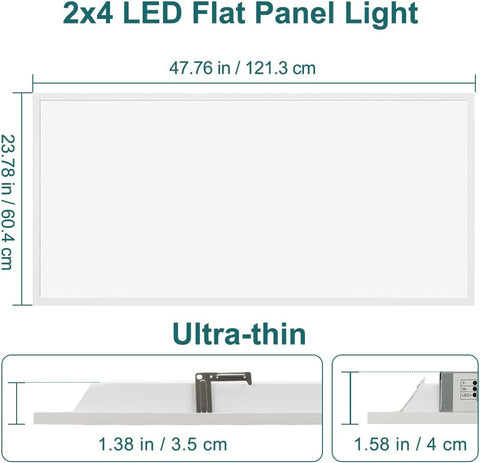

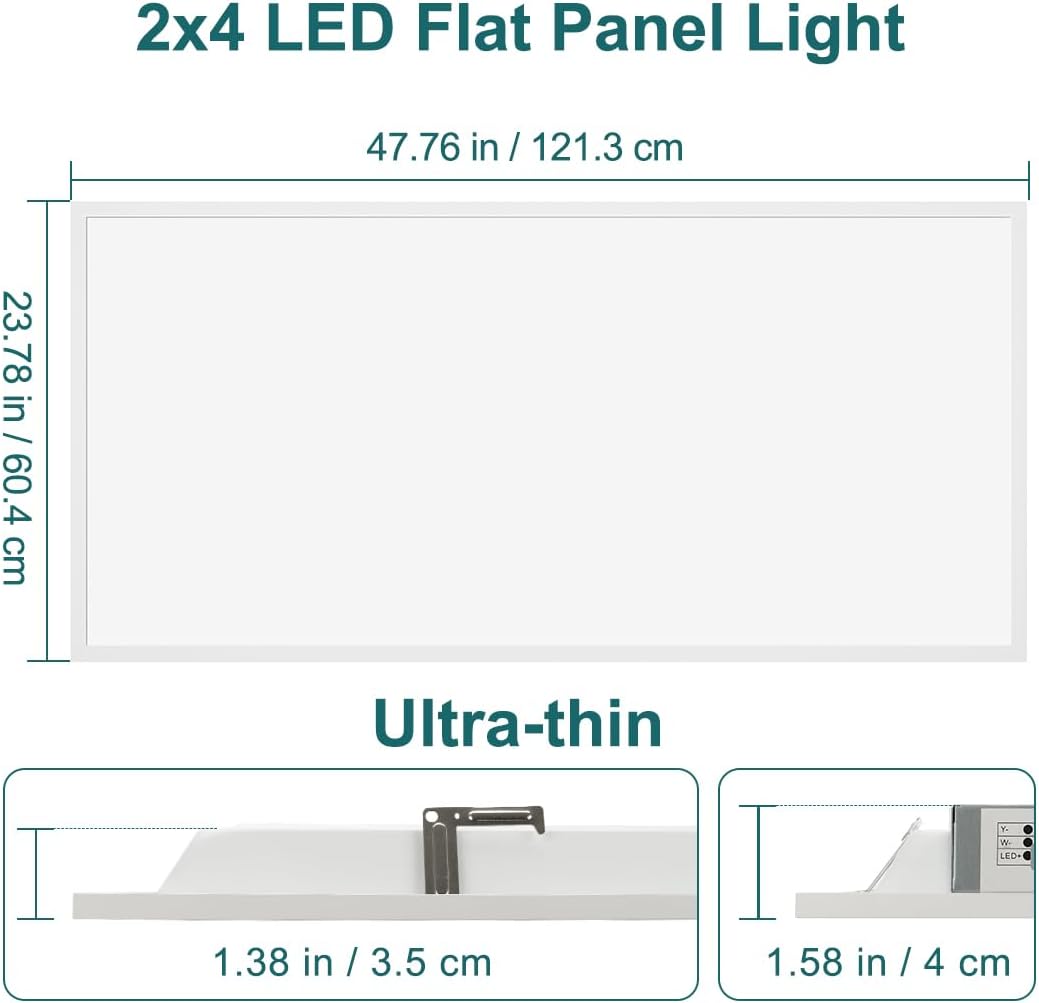

  • Dimensions: 2x4 ft (1213mm x 603mm x 30mm)

  • Power (Tunable Wattage): 50W / 45W / 40W (Field-selectable)

  • Lumen Output (Approx.): >5200LM (40W) to >6500LM (50W) (calculated from 130LM/W)

  • Luminous Efficacy: 130LM/W

  • Beam Angle: 120°

  • IP Rating: 44

  • Selectable CCT: 3000K / 3500K / 4000K / 5000K (4-selectable options, consistent with series)

  • Dimming: Dimmable (via integrated control)

Key Features (Common to YG040 Series):

• Product Type: LED Panel Lights, designed for standard grid ceiling systems (2x2, 1x4, 2x4 ft sizes).

• LED Type: SMD LED, ensuring wide (120° beam angle) and uniform light distribution for comprehensive area illumination.

• Ultra-High Luminous Efficacy: Achieves an impressive 130 lumens per watt, maximizing light output for energy efficiency.

• Field-Selectable Wattage: Allows on-site adjustment of power consumption and brightness levels to meet specific project requirements, reducing complexity in ordering and inventory.

• Multi-Selectable Color Temperature (CCT): Offers four distinct white light options (3000K Warm White to 5000K Daylight) for versatile ambiance control, typically adjusted via a switch on the fixture or driver.

• Dimmable Functionality: Integrated dimming capabilities (likely 0-10V) provide precise control over brightness, enhancing comfort and energy savings.

• Damp Location Suitable: An IP44 rating offers protection against solid objects larger than 1mm and splashing water, making them suitable for use in offices, classrooms, and other commercial interiors.

Benefits & Applications:

• Maximized Energy Savings: Top-tier efficacy significantly reduces operational costs for large installations.

• Exceptional Flexibility: Tailor light levels and color temperature on-site, adapting to diverse tasks, preferences, and building codes.

• Uniform Illumination: Provides consistent and comfortable light distribution across large areas, minimizing shadows and glare.

• Streamlined Installation: Designed for easy integration into standard ceiling grids.

• Versatile Use: Ideal for general ambient lighting in commercial offices, schools, healthcare facilities, retail stores, conference rooms, and hallways.
