YG01 7LHB1 1 0 -X- DM

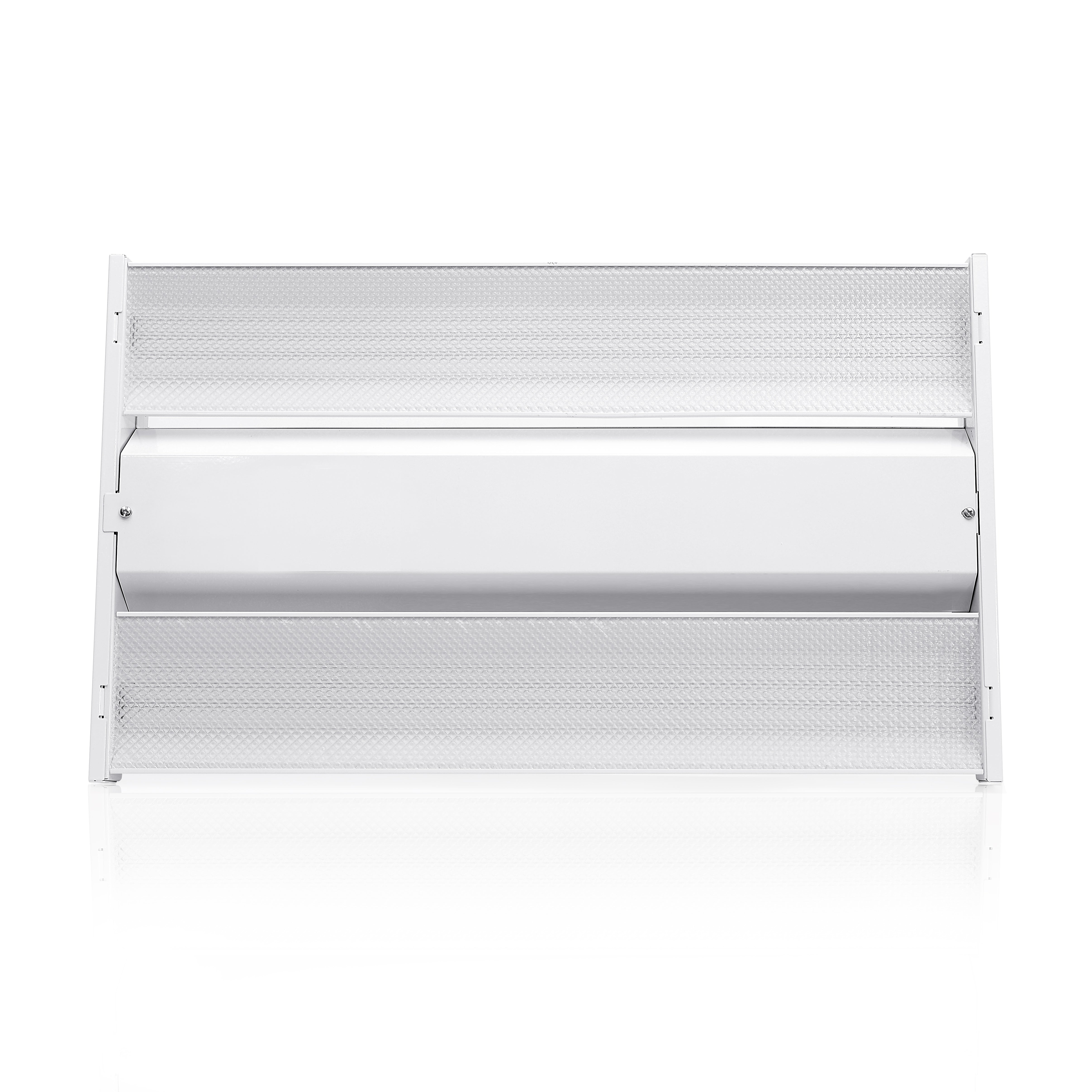

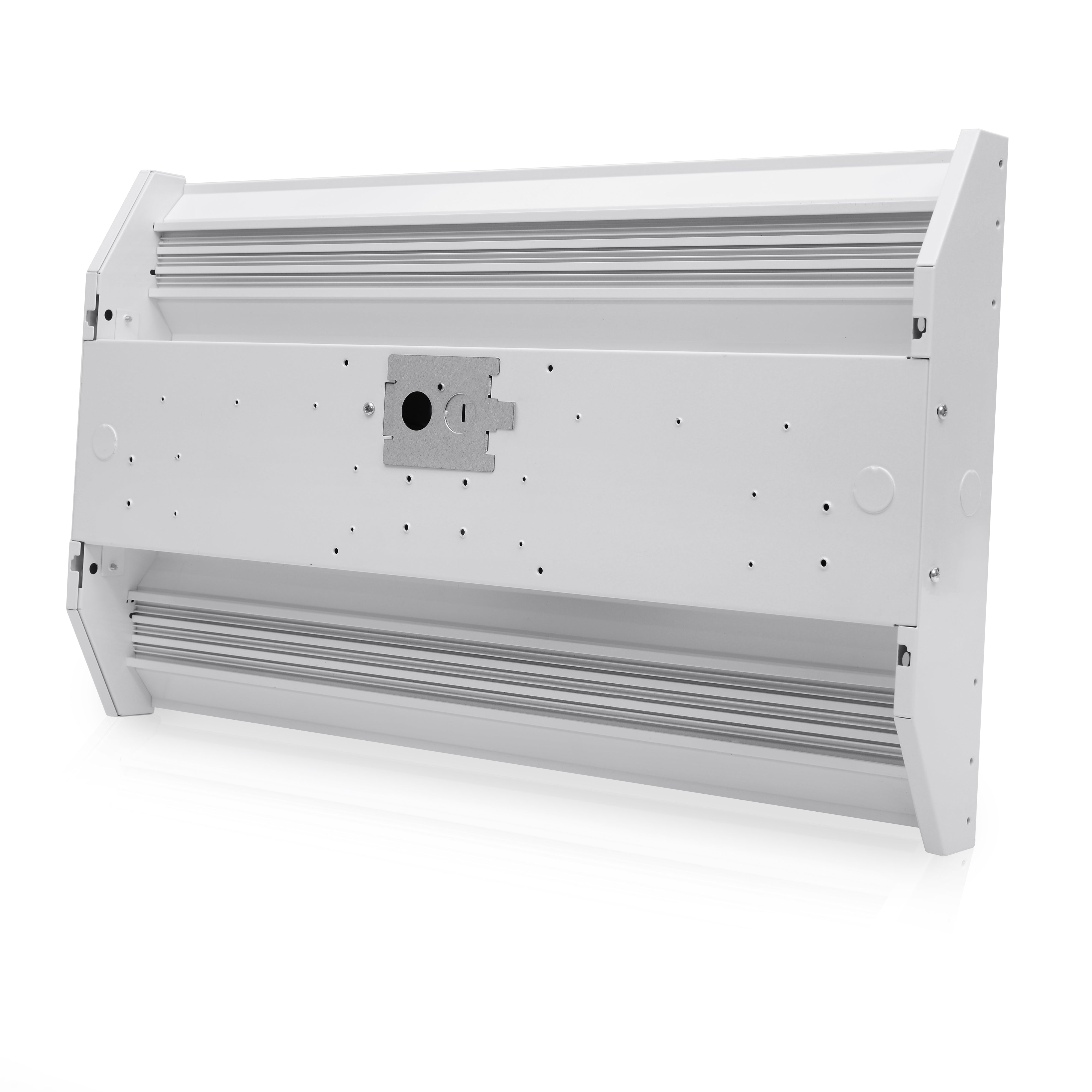

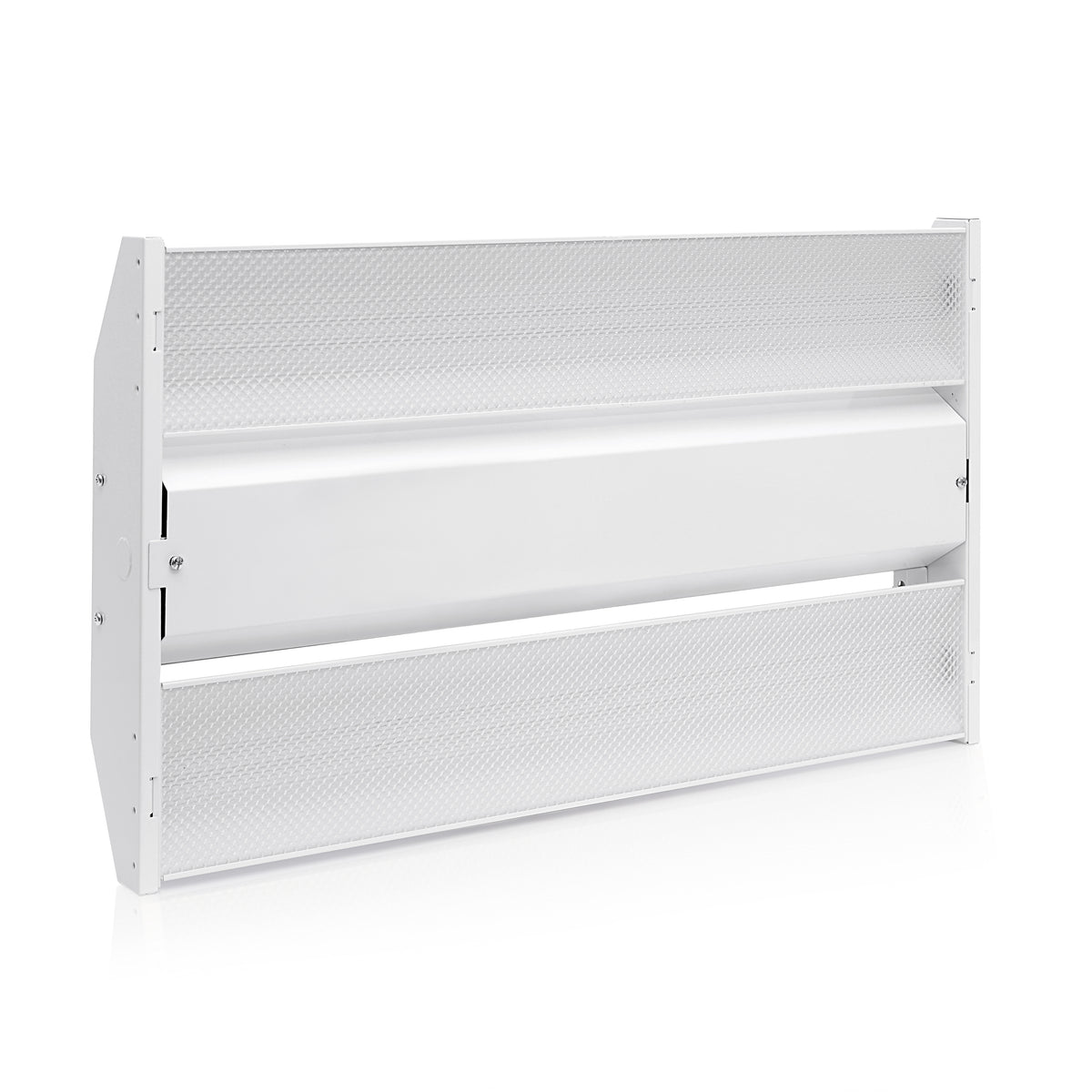

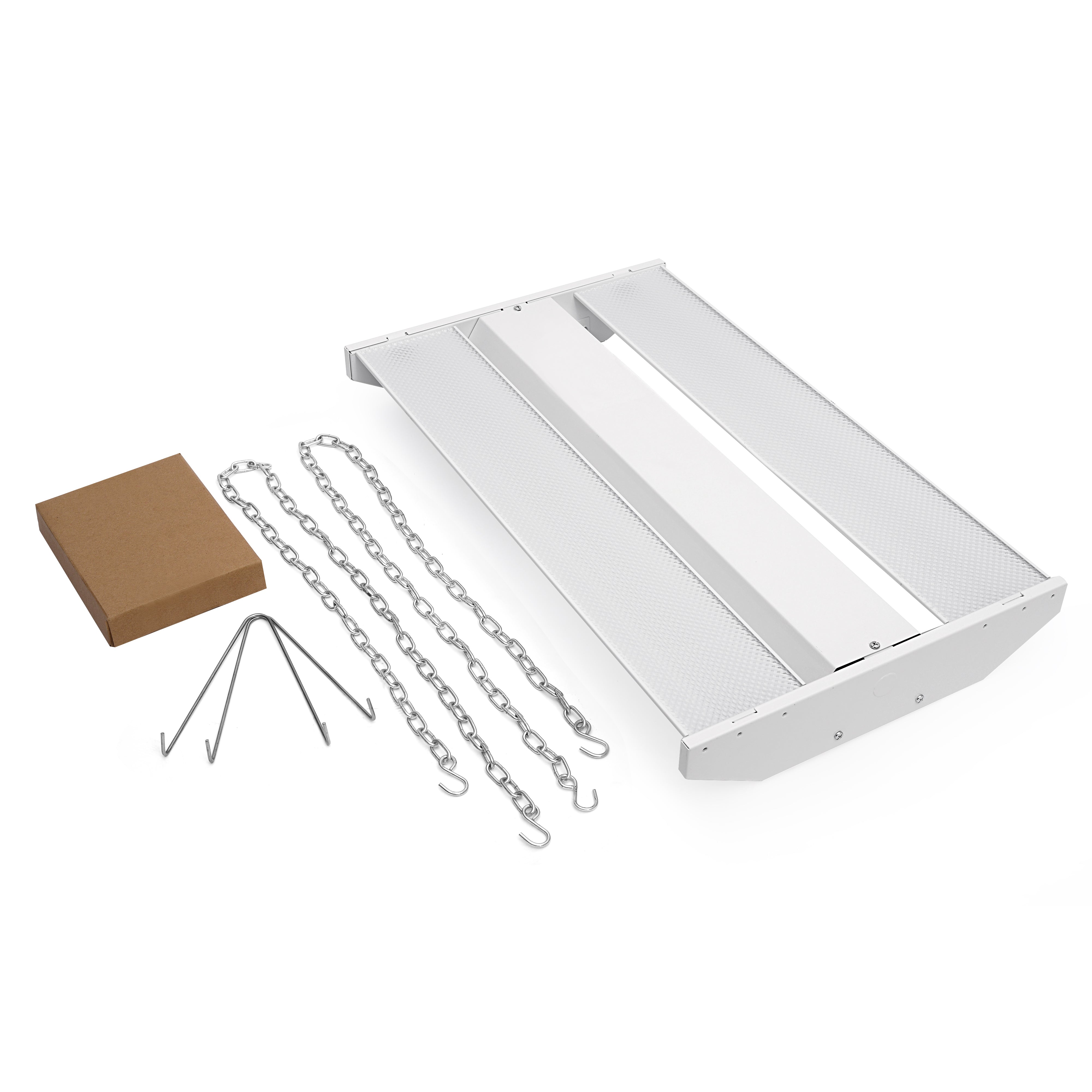

Product Description: YG017LHB Series High-Efficacy Dimmable LED High Bay Luminaires (Circlighting)

The Circlighting YG017LHB Series LED High Bay Luminaires are powerful and highly efficient lighting solutions engineered for demanding high-ceiling environments. Designed for industrial and commercial applications, these fixtures deliver robust and consistent illumination with an impressive luminous efficacy of 135 lumens per watt. Featuring a durable IP65 rating, dimmable functionality, and a versatile range of selectable color temperatures (including a unique 2000K option), the YG017LHB series provides reliable and adaptable lighting for warehouses, factories, gymnasiums, and large open spaces.

Available Models & Specifications:

• YG017LHB110-X-DM:

  • Power (Wattage): 110W

  • Lumen Output (Approx.): >14,850LM (calculated from 135LM/W)

  • Luminous Efficacy: 135LM/W

  • CRI (Color Rendering Index): >80

  • IP Rating: IP65

  • Selectable CCT: 2000K (Amber/Very Warm White) / 4000K (Cool White) / 5000K (Daylight) / 6000K (Cool Daylight)

• YG017LHB165-X-DM:

  • Power (Wattage): 165W

  • Lumen Output (Approx.): >22,275LM (calculated from 135LM/W)

  • Luminous Efficacy: 135LM/W

  • CRI: >80

  • IP Rating: IP65

  • Selectable CCT: 2000K / 4000K / 5000K / 6000K (Consistent with series features)

• YG017LHB220-X-DM:

  • Power (Wattage): 220W

  • Lumen Output (Approx.): >29,700LM (calculated from 135LM/W)

  • Luminous Efficacy: 135LM/W

  • CRI: >80

  • IP Rating: IP65

  • Selectable CCT: 2000K / 4000K / 5000K / 6000K (Consistent with series features)

• YG017LHB320-X-DM:

  • Power (Wattage): 320W

  • Lumen Output (Approx.): >43,200LM (calculated from 135LM/W)

  • Luminous Efficacy: 135LM/W

  • CRI: >80

  • IP Rating: IP65

  • Selectable CCT: 2000K / 4000K / 5000K / 6000K (Consistent with series features)

Key Features (Common to YG017LHB Series):

• Product Type: High-performance LED High Bay Luminaires, designed for illuminating large open areas with high ceilings.

• High Luminous Efficacy: Delivers an impressive 135 lumens per watt, ensuring powerful illumination with high energy efficiency.

• Dimmable Functionality (DM): Provides precise control over light output, allowing for energy savings and adaptable lighting levels.

• Wet Location & Dust-Tight (IP65): The robust IP65 rating signifies complete protection against dust ingress and resistance to low-pressure water jets, making them suitable for challenging industrial and outdoor covered environments.

• Multi-Selectable Color Temperature (CCT): Offers four distinct white light options, including a very warm 2000K, a standard 4000K Cool White, and brighter 5000K Daylight and 6000K Cool Daylight, for versatile ambiance and task requirements.

• Good Color Rendering: A CRI of >80 ensures that colors appear natural and accurate under illumination.

• Robust Construction: Built for durability and long-term performance in demanding settings.

• Beam Angle: (Though not specified, typically 60°, 90°, or 120° options are available for high bays, indicated by the "-X-" in the model name).

Benefits & Applications:

• Exceptional Energy Savings: Significant reductions in electricity consumption and operating costs due to high efficacy and dimmable features.

• Flexible Lighting Design: Adaptable CCTs and dimming capability allow tailoring the lighting to various tasks, shift requirements, or ambient preferences.

• Durable & Reliable: Engineered to withstand harsh industrial conditions, ensuring long operational life and minimal maintenance.

• Powerful Illumination: Provides high lumen output suitable for illuminating vast spaces effectively.

• Ideal for: Warehouses, factories, manufacturing facilities, distribution centers, gymnasiums, large retail spaces, convention centers, and other high-ceiling commercial and industrial applications.
