D17-050A-A

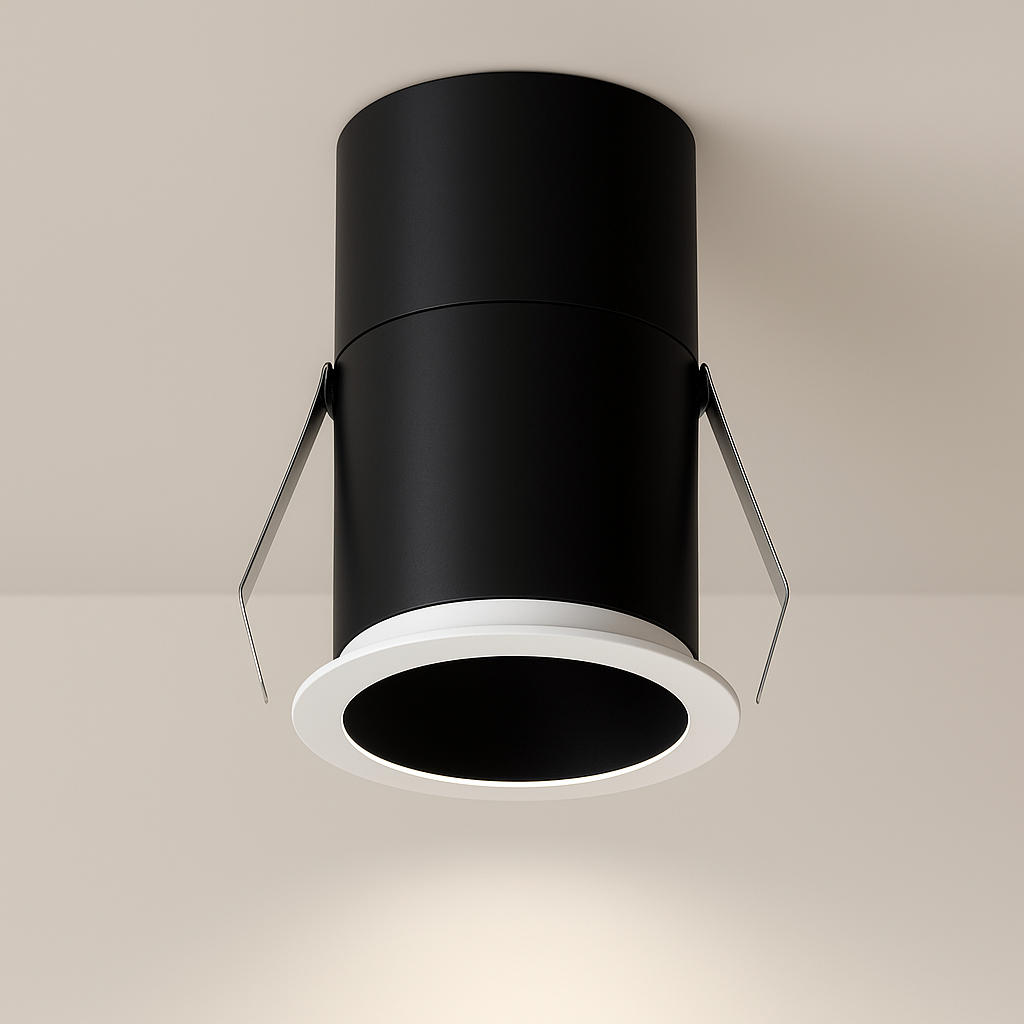

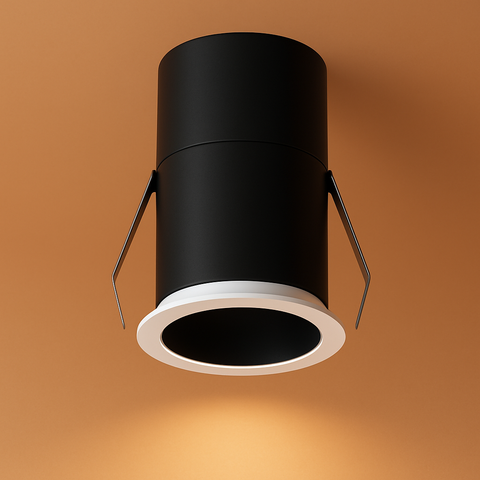

Product Description: D17-050A-A Circular High-Power Bridgelux LED Downlight / Accent Luminaire (Circlighting)

The Circlighting D17-050A-A is a modern and versatile 7W LED luminaire distinguished by its classic circular form factor. Designed for high-quality, precise illumination, this fixture is an ideal choice for architectural spaces that favor a clean and timeless aesthetic. Featuring a premium Bridgelux LED chip and a broad range of beam angle options, the D17-050A-A provides exceptional lighting control for everything from focused accentuation to effective general illumination. Its robust construction and array of finish options ensure seamless integration into sophisticated interior designs.

Key Features & Specifications:

• Model: D17-050A-A

• Dimensions:

  • Outer Diameter: 55mm (approximately 2.17 inches)

  • Height: 80mm (approximately 3.15 inches)

  • Cutout/Mounting Dimensions: 50mm (approximately 1.97 inches)

• Power: 7W (Offers powerful light output for a variety of illumination needs)

• Input: DC36V, 200mA (Requires a dedicated constant current LED driver)

• LED Source: Bridgelux (Utilizes high-quality LED technology from a reputable manufacturer)

• Color Temperature (CCT): Available in 2700K (Warm White) / 3000K (Soft White) / 4000K (Cool White)

• Optics (Beam Angles):

  • 15° (Narrow Spot)

  • 24° (Spot)

  • 36° (Narrow Flood)

  • 55° (Wide Flood)

• Lifespan: 50,000 hours, ensuring long-term reliability and reduced maintenance needs.

• Finishes: Available in White and Black to complement various design schemes.

• LED Type: Likely utilizes COB (Chip-on-Board) LED technology to achieve high light density and precise beam control.

Benefits & Applications:

• Classic Aesthetic: The distinctive circular shape offers a timeless look, perfectly complementing a wide range of architectural designs.

• High-Power Illumination: Provides substantial light output, making it suitable for both intense accent lighting and effective downlighting in commercial and residential spaces.

• Versatile Light Distribution: The broad range of beam angles allows for precise highlighting, wall washing, or more uniform ambient lighting from a single fixture.

• Premium Light Quality: Bridgelux LED ensures excellent light consistency, clarity, and potentially high Color Rendering Index (CRI, though not explicitly stated for this model, is typical for premium LEDs).

• Long-Term Durability: The extended lifespan significantly reduces the frequency of replacements and overall maintenance costs, offering superior value.

Ideal for:

• Contemporary and traditional commercial spaces, lobbies, and reception areas

• Retail displays and showrooms require sharp, defined lighting

• Museum and gallery illumination where precise light patterns are desired

• Residential applications with a focus on clean and modern design elements.
