D01-150A-A

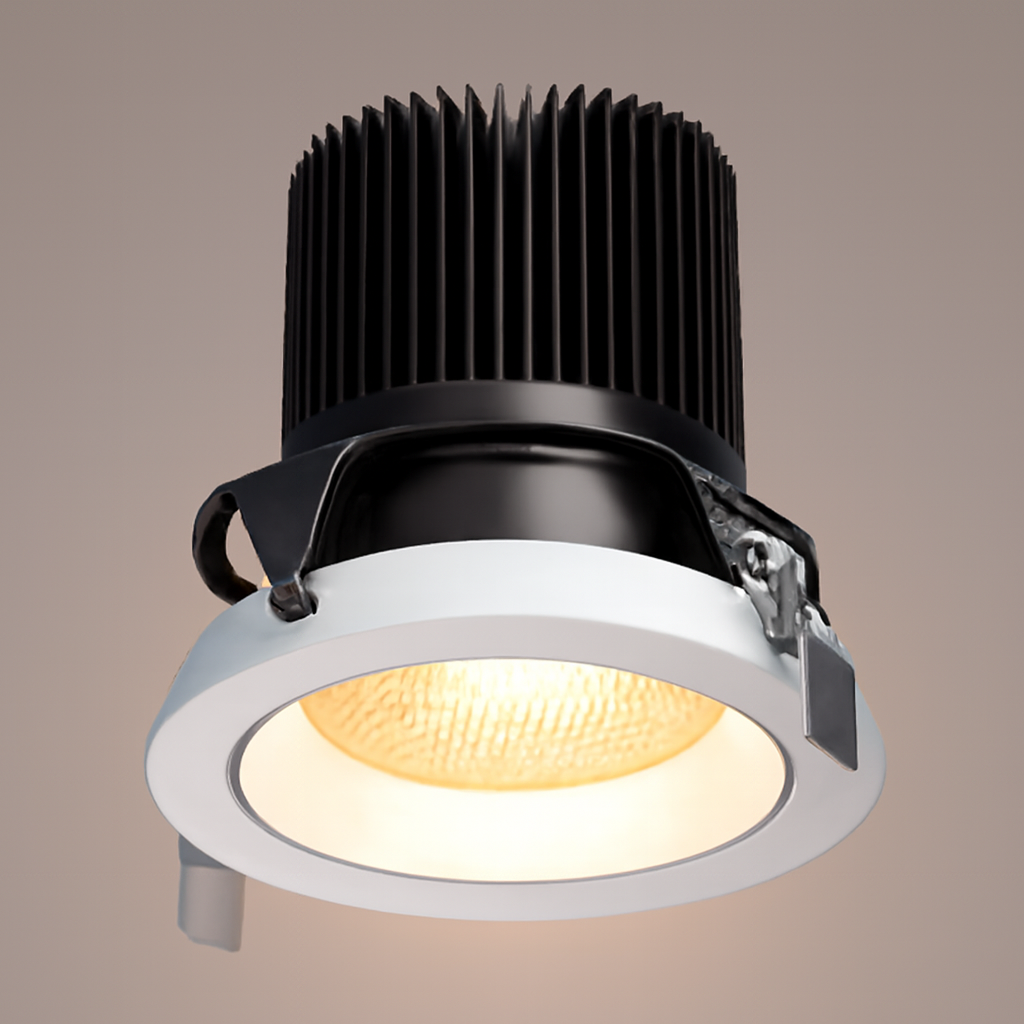

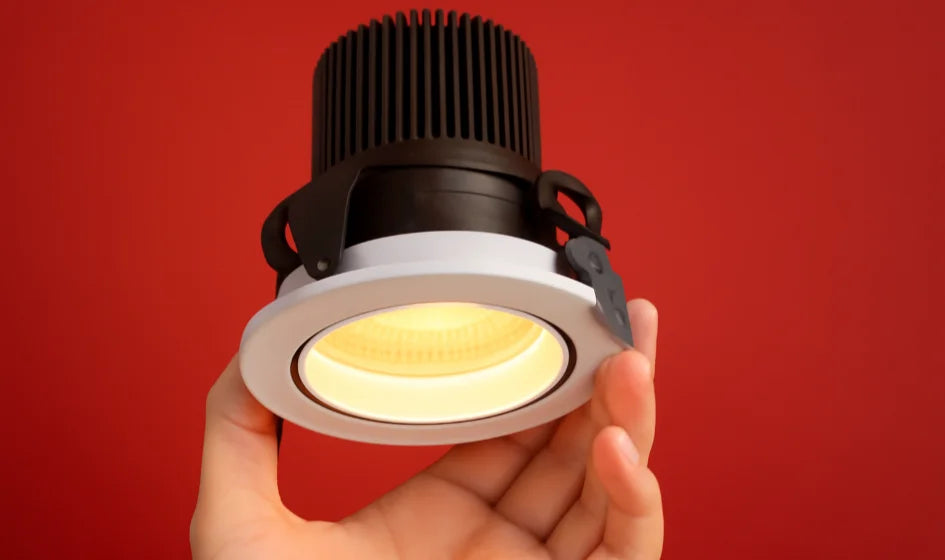

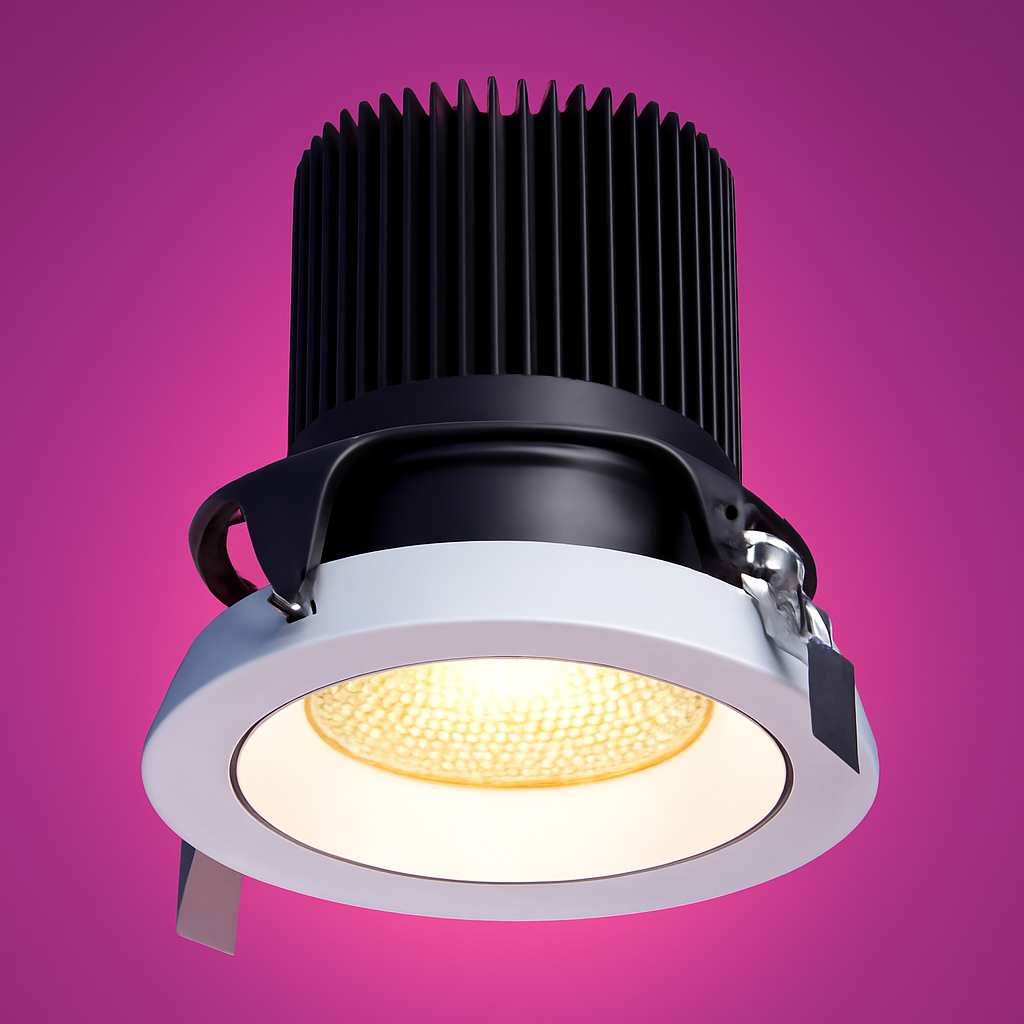

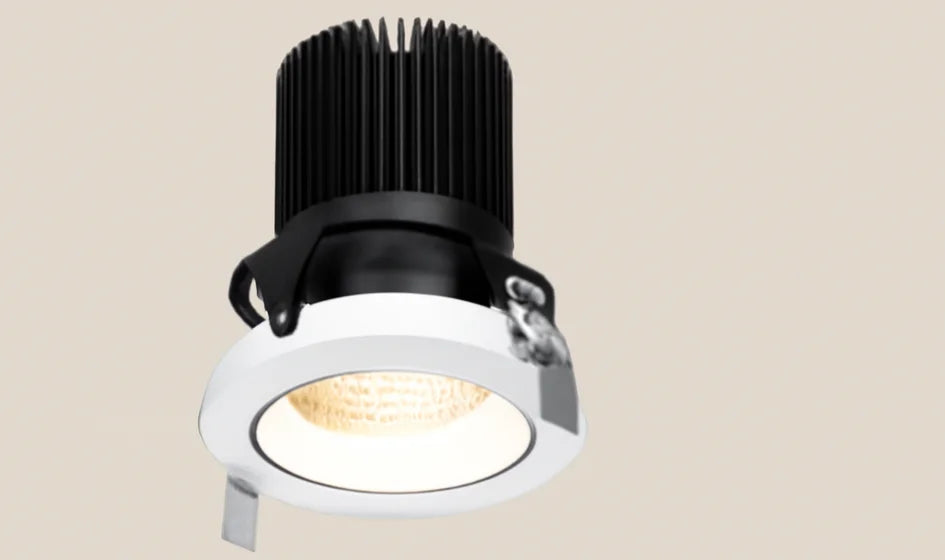

Product Description: D01-150A-A Ultra High-Power Bridgelux LED Downlight (Circlighting)

The Circlighting D01-150A-A is an exceptionally powerful 33W LED luminaire, representing a robust and large-scale solution within the D01 series. Engineered for environments demanding immense brightness and precise light control, this fixture features a premium Bridgelux LED chip, delivering extraordinary light output from a substantial, elegantly recessed form factor. With a focused range of beam angle options, from narrow spot to medium flood, and versatile color temperature choices, the D01-150A-A provides comprehensive lighting flexibility for both intense accentuation and effective general downlighting in high-ceiling or expansive spaces. Its durable construction and array of finish options ensure seamless integration into sophisticated interior designs.

Key Features & Specifications:

• Model: D01-150A-A

• Dimensions:

  • Diameter: $\varnothing$160mm (approximately 6.30 inches)

  • Height: 122mm (approximately 4.80 inches)

  • Cutout/Mounting Diameter: 150mm (approximately 5.91 inches - ideal for larger recessed installations)

• Power: 33W (Provides exceptionally high light output for demanding illumination needs)

• Input: DC36V, 900mA (Requires a dedicated high-power constant current LED driver)

• LED Source: Bridgelux (Utilizes high-quality LED technology from a reputable manufacturer)

• Color Temperature (CCT): Available in 2700K (Warm White) / 3000K (Soft White) / 4000K (Cool White) / 5000K (Daylight)

• Optics (Beam Angles):

  • 15° (Narrow Spot)

  • 24° (Spot)

  • 40° (Medium Flood)

  • (Optimized for precise light focusing and effective general illumination)

• Lifespan: 50,000 hours, ensuring long-term reliability and reduced maintenance needs.

• Finishes: Available in White, Black, and Silver to complement various design schemes.

• LED Type: Likely utilizes COB (Chip-on-Board) LED technology to achieve high light density and robust thermal management for its powerful output.

Benefits & Applications:

• Unparalleled Light Output: Delivers extremely substantial illumination, making it ideal for primary lighting in very high-ceiling spaces or for creating dramatic, high-impact accent lighting on large features.

• Precise Light Control: The range of beam angles allows for accurate light placement, enabling both focused highlighting and effective general ambient lighting.

• Robust & Durable: Built to handle high power and ensure long-term performance in demanding commercial environments.

• Premium Light Quality: Bridgelux LED ensures excellent light consistency, clarity, and potentially high Color Rendering Index (CRI, though not explicitly stated for this model, is typical for premium LEDs).

• Long-Term Value: The extended lifespan significantly reduces the frequency of replacements and overall maintenance costs, offering a strong return on investment for large-scale projects.

• Versatile Design: Multiple CCT options and finish choices provide flexibility to match specific project requirements and interior design palettes.

• Ideal for:

  • Very high-ceiling commercial spaces, grand lobbies, and atriums

  • Large retail stores, showrooms, and exhibition halls

  • Museums and art galleries for illuminating significant, large-scale exhibits

  • Conference rooms and large hospitality venues

  • Architectural lighting requiring powerful, controllable downlight or accent solutions.
