D01-108D-A

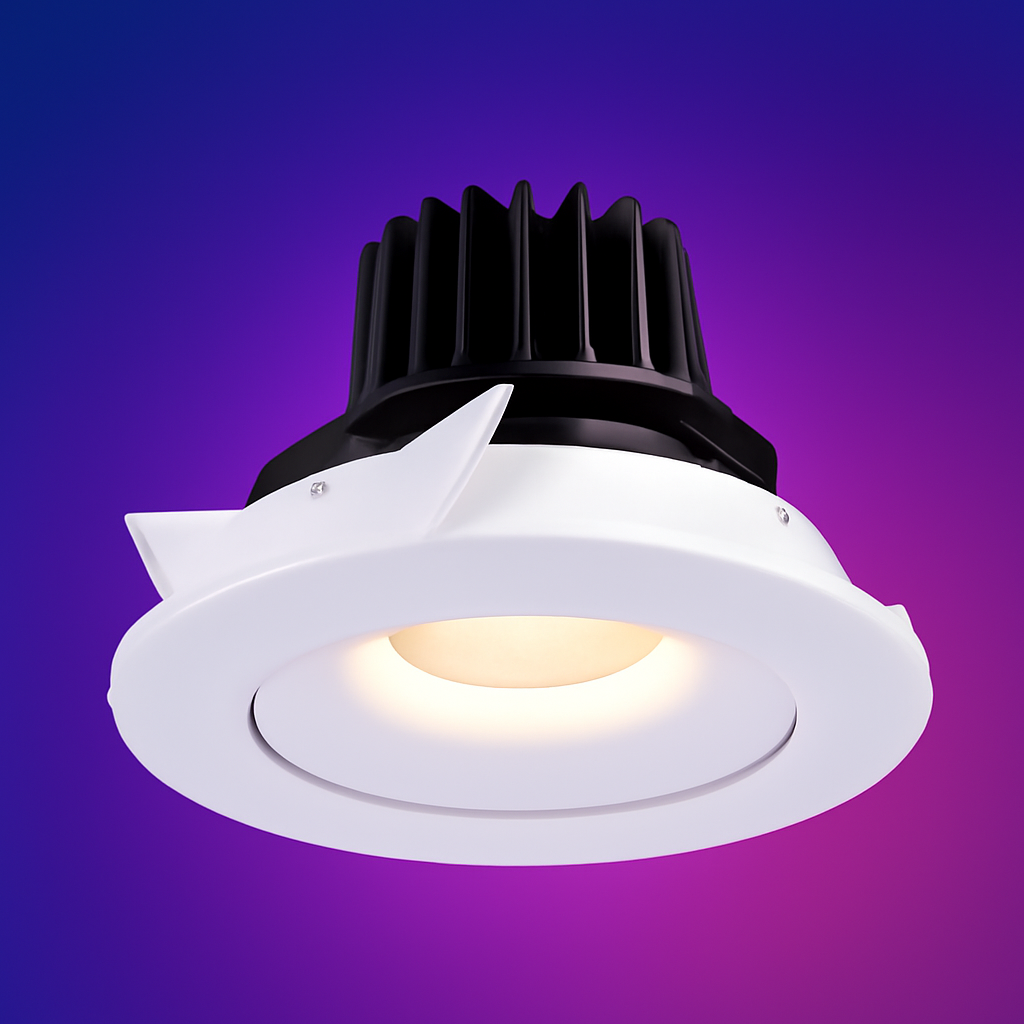

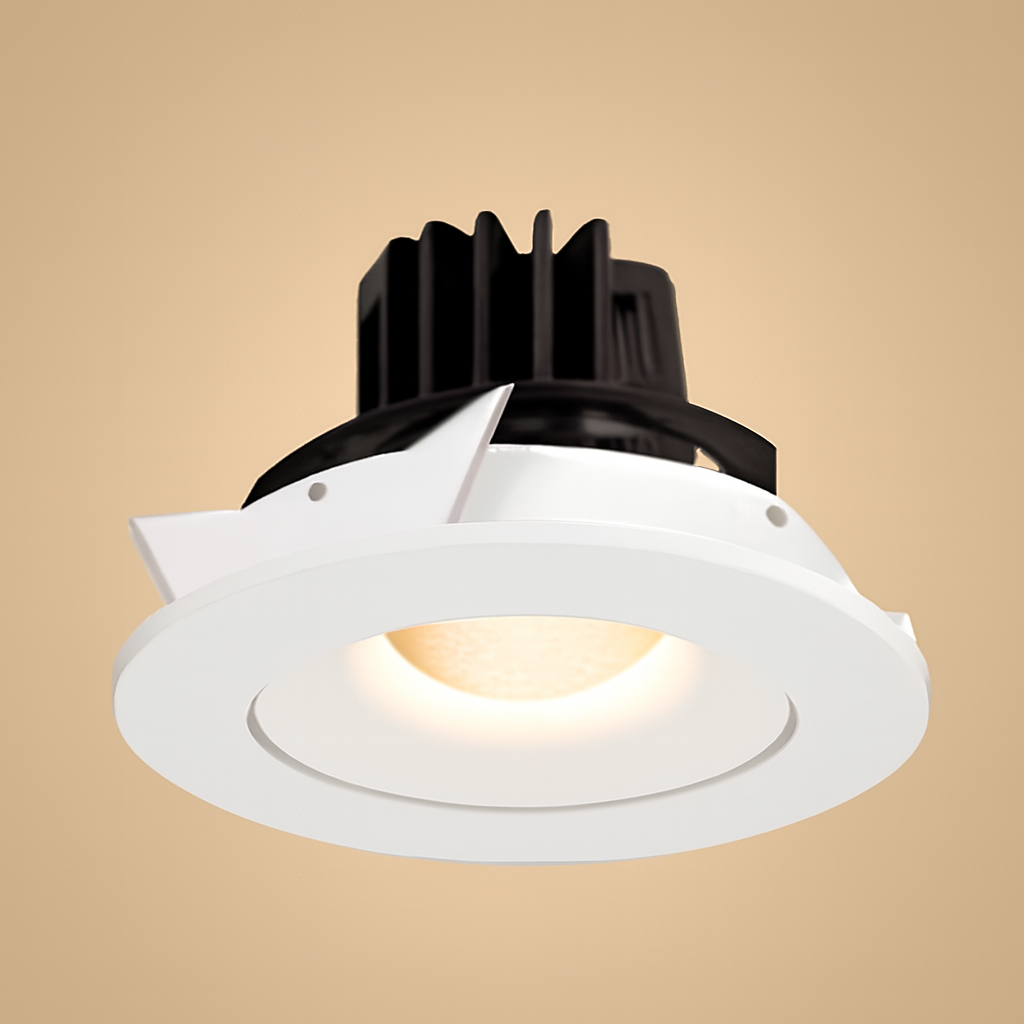

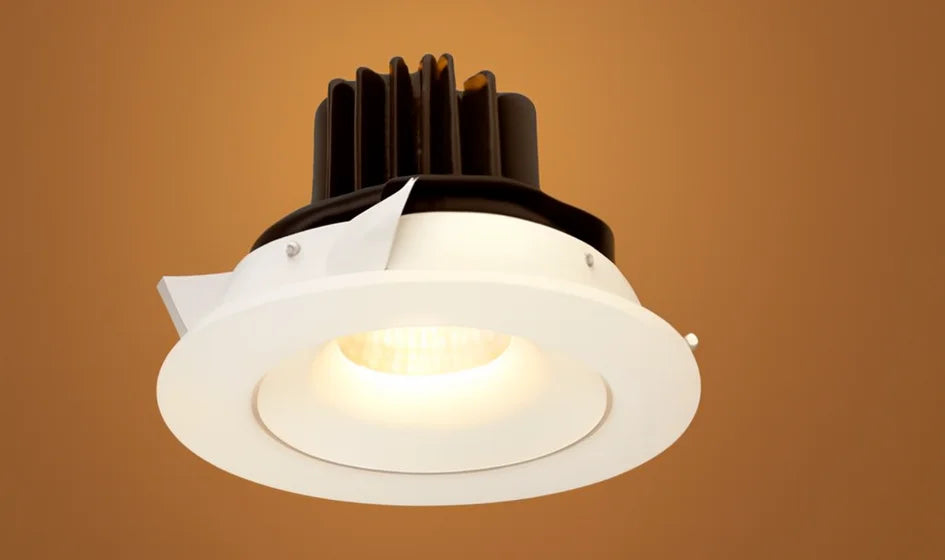

Product Description: D01-108D-A Mid-Power, Ultra-Shallow Bridgelux LED Downlight (Circlighting)

The Circlighting D01-108D-A is an exceptionally compact and versatile 13W LED luminaire, meticulously designed to provide high-quality illumination in spaces with severely limited ceiling cavity. This model stands out from the higher-power D01-108 series with its ultra-shallow profile and broader optical versatility, making it a perfect solution for challenging installations. Featuring a premium Bridgelux LED chip and a wide range of beam angle options, the D01-108D-A offers exceptional lighting control for creating precise accent lighting or effective general downlighting. Its durable construction and array of finish options ensure seamless integration into sophisticated interior designs.

Key Features & Specifications:

• Model: D01-108D-A

• Dimensions:

  • Diameter: $\varnothing$125mm (approximately 4.92 inches)

  • Height: 70mm (approximately 2.76 inches) - Ultra-Shallow Profile

  • Cutout/Mounting Diameter: 108mm (approximately 4.25 inches - ideal for recessed installations)

• Power: 13W (Offers a powerful yet efficient light output)

• Input: DC36V, 350mA (Requires a dedicated constant current LED driver)

• LED Source: Bridgelux (Utilizes high-quality LED technology from a reputable manufacturer)

• Color Temperature (CCT): Available in 2700K (Warm White) / 3000K (Soft White) / 4000K (Cool White) / 5000K (Daylight)

• Optics (Beam Angles):

  • 15° (Narrow Spot)

  • 25° (Spot)

  • 38° (Narrow Flood)

  • 60° (Wide Flood)

  • (Provides comprehensive versatility from accent to broader illumination)

• Lifespan: 50,000 hours, ensuring long-term reliability and reduced maintenance needs.

• Finishes: Available in White, Black, and Silver to complement various design schemes.

• LED Type: Likely utilizes COB (Chip-on-Board) LED technology to achieve high light density and efficient thermal management in its ultra-shallow profile.

Benefits & Applications:

• Ultra-Shallow Design: The 70mm depth makes it an ideal solution for installations with extremely restricted ceiling void space, such as in renovated buildings or multi-level structures.

• Versatile Light Distribution: The broad range of beam angles (15°-60°) allows for both precise highlighting and wider ambient lighting from a single fixture.

• Efficient Power: Provides a substantial 13W output, balancing high-quality illumination with energy efficiency.

• Precise Light Control: The range of optics enables highly accurate light placement, minimizing spill light and creating targeted effects.

• High-Quality Light Output: Bridgelux LED ensures excellent light consistency, clarity, and potentially high Color Rendering Index (CRI, though not explicitly stated for this model, is typical for premium LEDs).

• Ideal for:

  • Renovations and projects with limited plenum space

  • High-end residential applications

  • Retail and hospitality lighting requiring a shallow-profile solution

  • Architectural lighting where space is a critical constraint.
