D01-108C-A

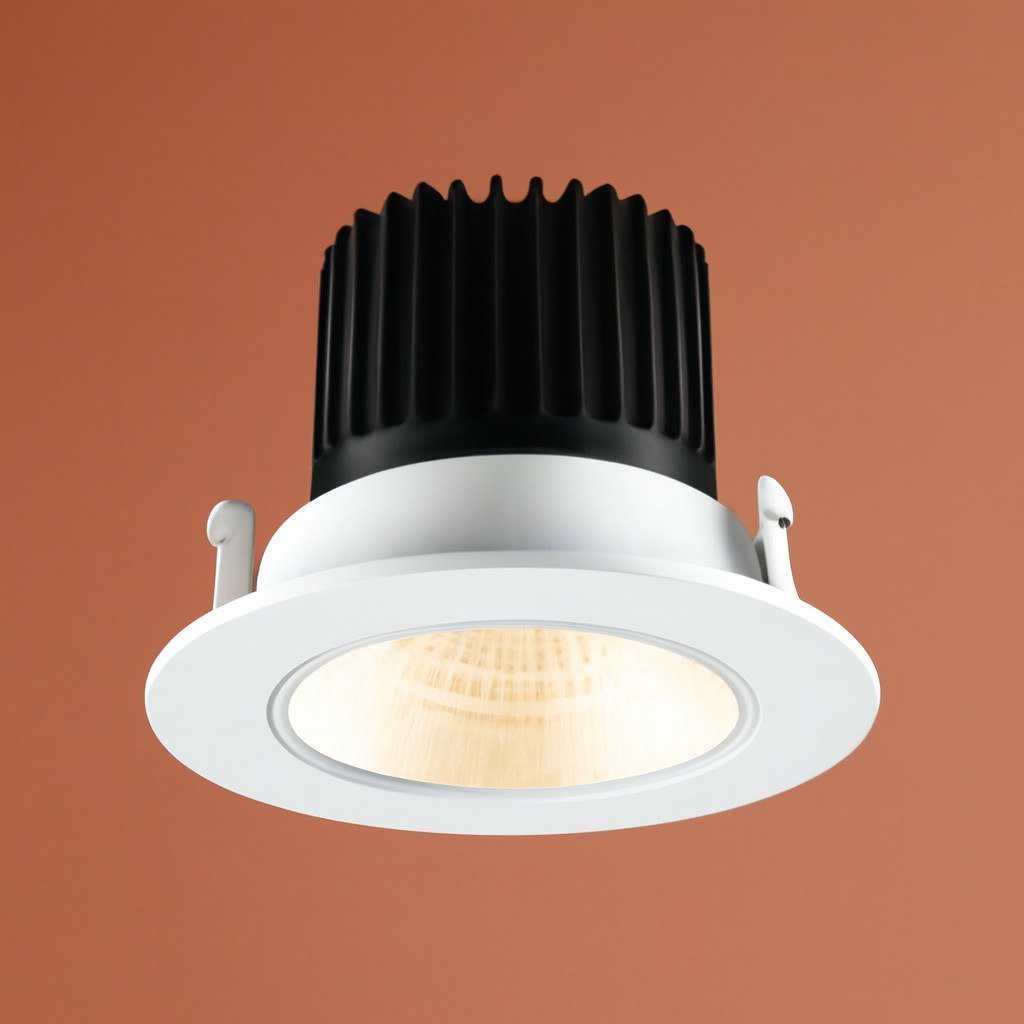

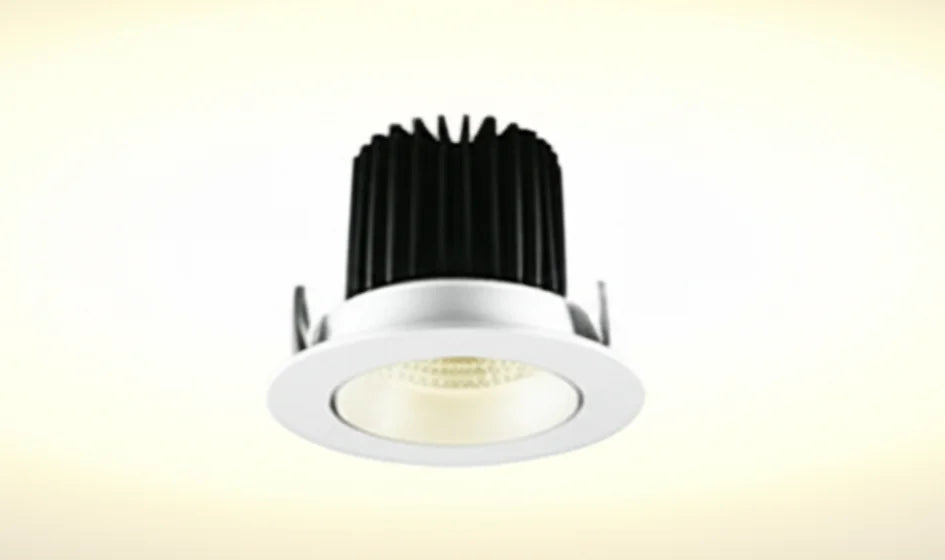

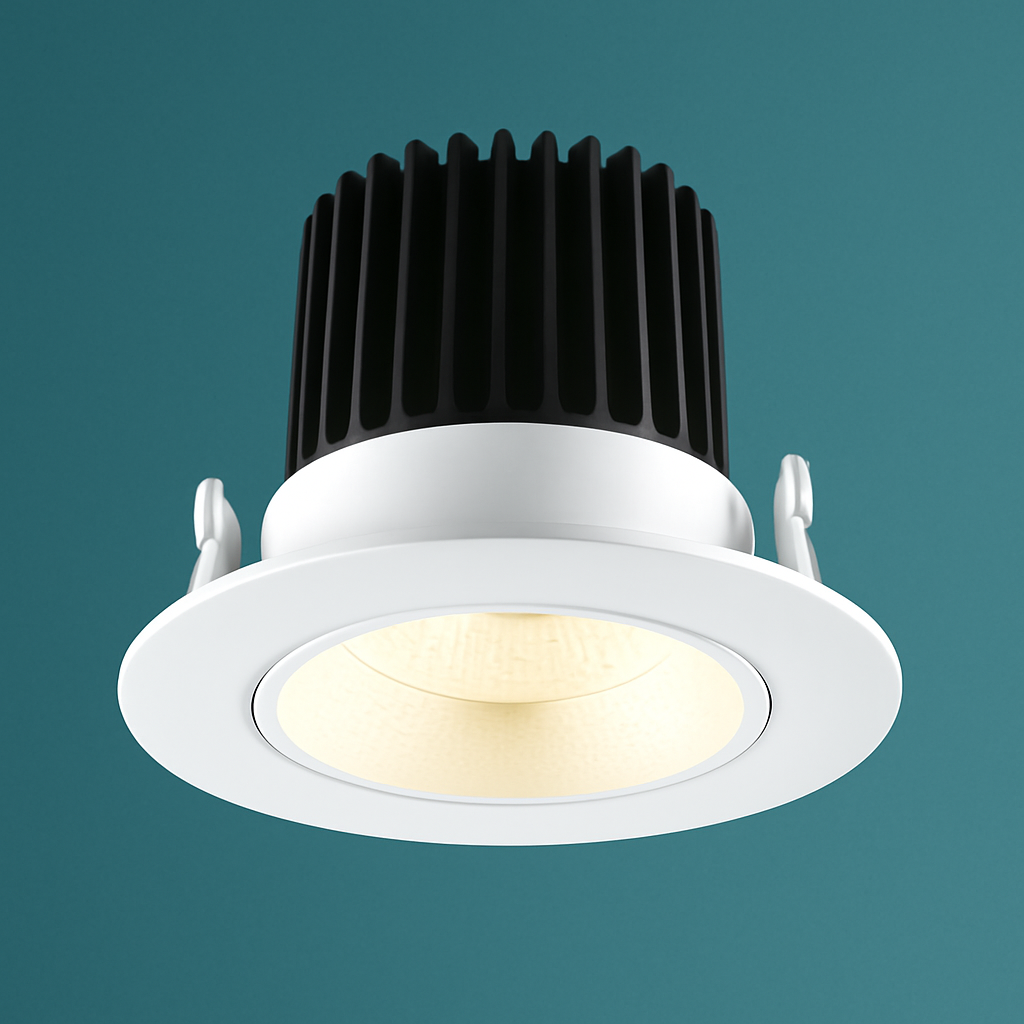

Product Description: D01-108C-A High-Power, Shallow Profile Bridgelux LED Downlight (Circlighting)

The Circlighting D01-108C-A is a high-performance 26W LED luminaire, meticulously designed to provide powerful and precise illumination in spaces with limited ceiling cavity. This model offers the same high light output as its deeper counterparts but in a significantly shallower profile, making it a versatile solution for challenging installations. Featuring a premium Bridgelux LED chip, a focused range of beam angle options, and versatile color temperature choices, the D01-108C-A offers exceptional lighting control for creating impactful accent lighting or effective general downlighting. Its durable construction and array of finish options ensure seamless integration into sophisticated interior designs.

Key Features & Specifications:

• Model: D01-108C-A

• Dimensions:

  • Diameter: $\varnothing$125mm (approximately 4.92 inches)

  • Height: 86mm (approximately 3.39 inches) - Shallow Profile

  • Cutout/Mounting Diameter: 108mm (approximately 4.25 inches - ideal for recessed installations)

• Power: 26W (Provides very high light output for demanding illumination needs)

• Input: DC36V, 700mA (Requires a dedicated high-power constant current LED driver)

• LED Source: Bridgelux (Utilizes high-quality LED technology from a reputable manufacturer)

• Color Temperature (CCT): Available in 2700K (Warm White) / 3000K (Soft White) / 4000K (Cool White) / 5000K (Daylight)

• Optics (Beam Angles):

  • 20° (Narrow Spot)

  • 30° (Spot)

  • 40° (Narrow Flood)

  • (Optimized for precise and controlled light distribution)

• Lifespan: 50,000 hours, ensuring long-term reliability and reduced maintenance needs.

• Finishes: Available in White, Black, and Silver to complement various design schemes.

• LED Type: Likely utilizes COB (Chip-on-Board) LED technology to achieve high light density and efficient thermal management in a shallower profile.

Benefits & Applications:

• Shallow Profile Design: Ideal for installations with restricted ceiling void space, providing a high-power solution where deeper fixtures would not fit.

• High-Impact Illumination: Delivers substantial light output, making it suitable for primary lighting in many spaces or for creating dramatic accent lighting.

• Precise Light Control: The focused range of beam angles allows for highly accurate light placement, enabling both targeted highlighting and effective general ambient lighting.

• Robust & Discreet: The luminaire maintains a sleek, recessed profile, integrating seamlessly into modern and traditional interiors.

• Premium Light Quality: Bridgelux LED ensures excellent light consistency, clarity, and potentially high Color Rendering Index (CRI, though not explicitly stated for this model, is typical for premium LEDs).

• Long-Term Durability & Value: The extended lifespan significantly reduces the frequency of replacements and overall maintenance costs.

• Ideal for:

  • High-ceiling commercial spaces, lobbies, and reception areas with limited plenum space

  • Retail stores and showrooms for merchandise accentuation

  • Hospitality venues and conference rooms

  • Architectural lighting requiring powerful, controllable downlight or accent solutions

  • Retrofit projects where a shallow fixture is required.
