D01-078D-A

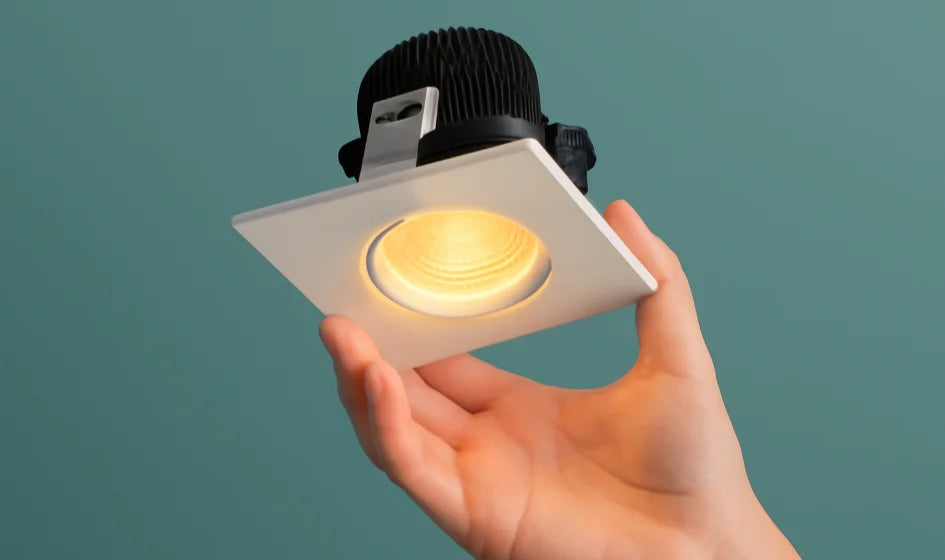

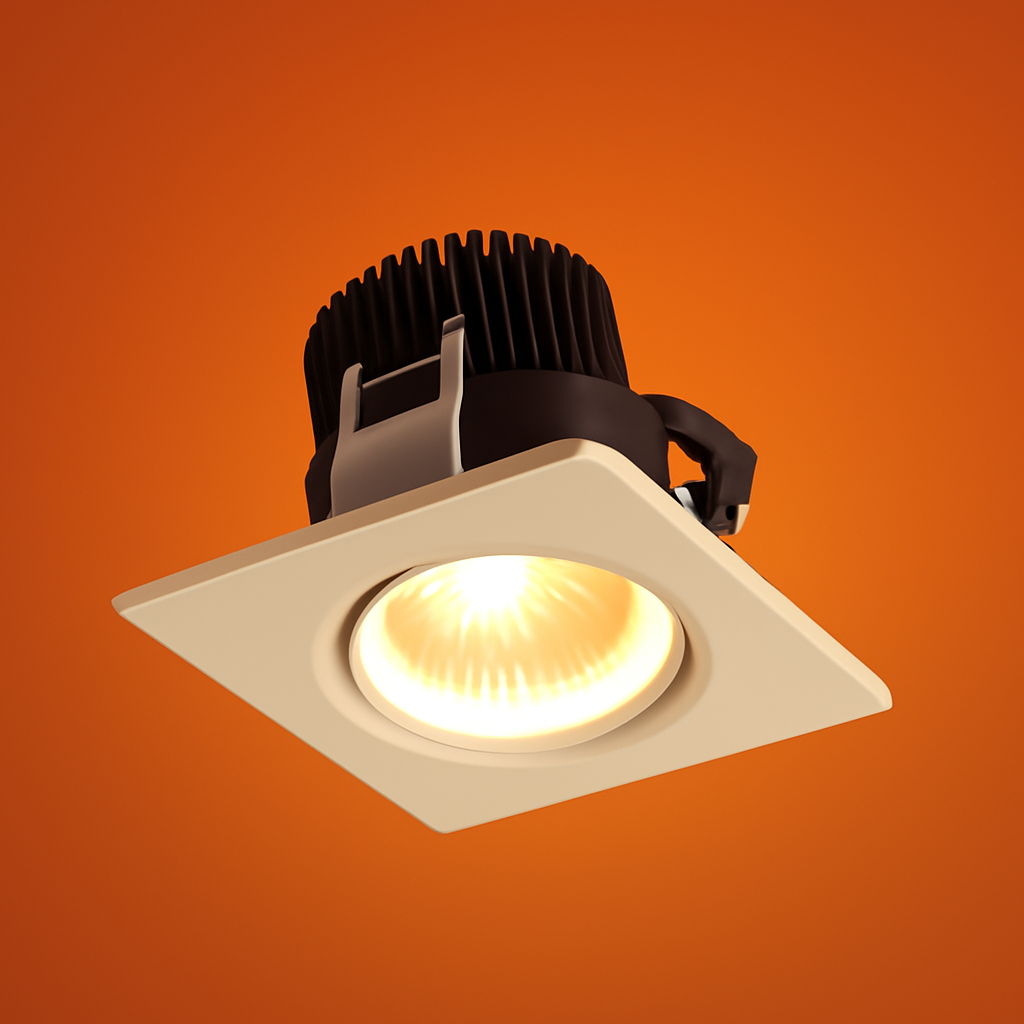

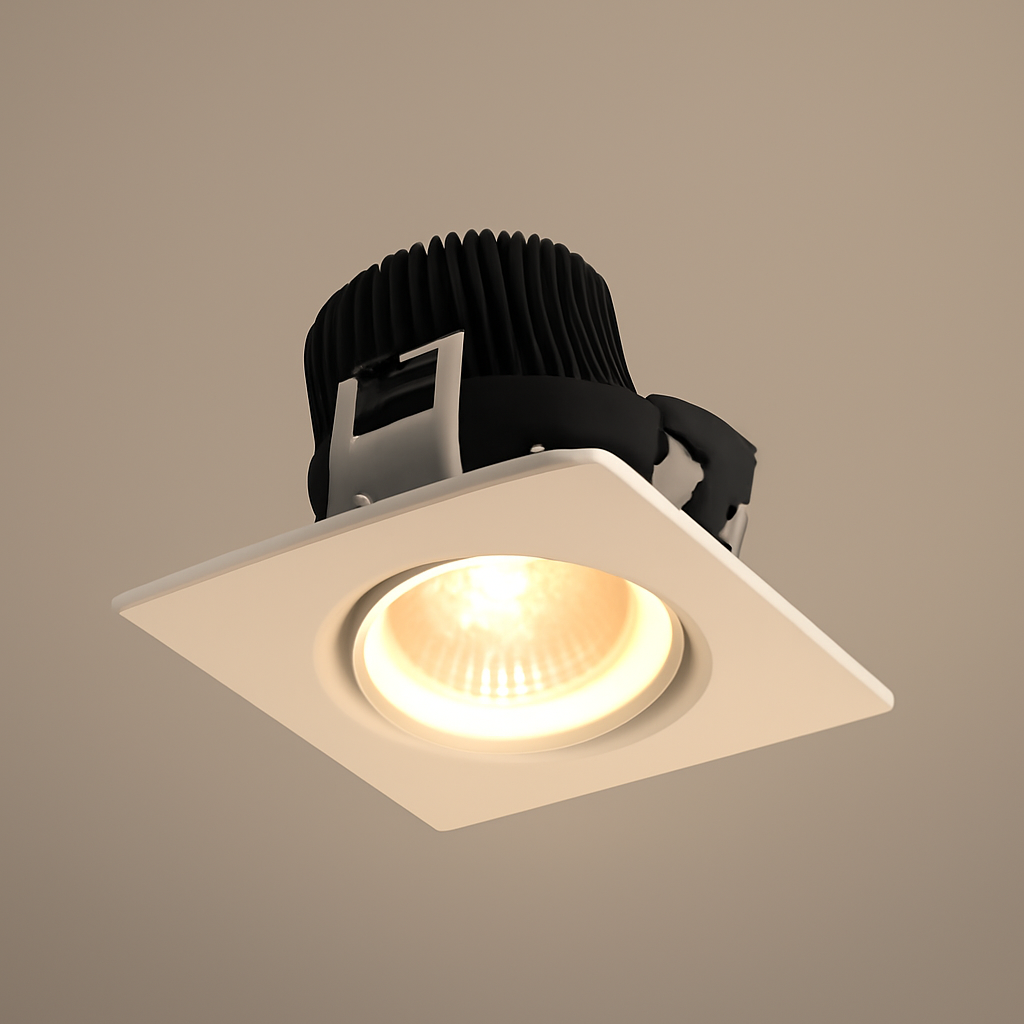

Product Description: D01-078D-A Square High-Power Bridgelux LED Downlight / Accent Luminaire (Circlighting)

The Circlighting D01-078D-A is a modern and versatile 13W LED luminaire distinguished by its contemporary square form factor. Designed for high-quality, precise illumination, this fixture is an ideal choice for architectural spaces that favor a geometric aesthetic. Featuring a premium Bridgelux LED chip and a broad range of beam angle options, the D01-078D-A provides exceptional lighting control for everything from focused accentuation to effective general illumination. Its robust construction and array of finish options ensure seamless integration into sophisticated interior designs.

Key Features & Specifications:

• Model: D01-078D-A

• Dimensions:

  • Outer Dimensions: 92x92mm (approximately 3.62 x 3.62 inches) - Square Form Factor

  • Height: 69.3mm (approximately 2.73 inches)

  • Cutout/Mounting Dimensions: 78mm (approximately 3.07 inches)

• Power: 13W (Offers powerful light output for a variety of illumination needs)

• Input: DC36V, 350mA (Requires a dedicated constant current LED driver)

• LED Source: Bridgelux (Utilizes high-quality LED technology from a reputable manufacturer)

• Color Temperature (CCT): Available in 2700K (Warm White) / 3000K (Soft White) / 4000K (Cool White) / 5000K (Daylight)

• Optics (Beam Angles):

  • 15° (Narrow Spot)

  • 25° (Spot)

  • 38° (Narrow Flood)

  • 60° (Wide Flood)

  • (Note: The provided data had a minor conflict on beam angles; prioritizing the detailed dimension string values)

• Lifespan: 50,000 hours, ensuring long-term reliability and reduced maintenance needs.

• Finishes: Available in White, Black, and Silver to complement various design schemes.

• LED Type: Likely utilizes COB (Chip-on-Board) LED technology to achieve high light density and precise beam control.

Benefits & Applications:

• Modern Aesthetic: The distinctive square shape offers a contemporary look, perfectly complementing modern architectural designs and grid ceilings.

• High-Power Illumination: Provides substantial light output, making it suitable for both intense accent lighting and effective downlighting in commercial and residential spaces.

• Versatile Light Distribution: The broad range of beam angles allows for precise highlighting, wall washing, or more uniform ambient lighting from a single fixture.

• Premium Light Quality: Bridgelux LED ensures excellent light consistency, clarity, and potentially high Color Rendering Index (CRI, though not explicitly stated for this model, is typical for premium LEDs).

• Long-Term Durability: The extended lifespan significantly reduces the frequency of replacements and overall maintenance costs, offering superior value.

• Ideal for:

  • Contemporary commercial spaces, lobbies, and reception areas

  • Retail displays and showrooms requiring sharp, defined lighting

  • Museum and gallery illumination where precise square or linear light patterns are desired

  • Modern residential applications with a focus on geometric design elements.
