D01-065A-A

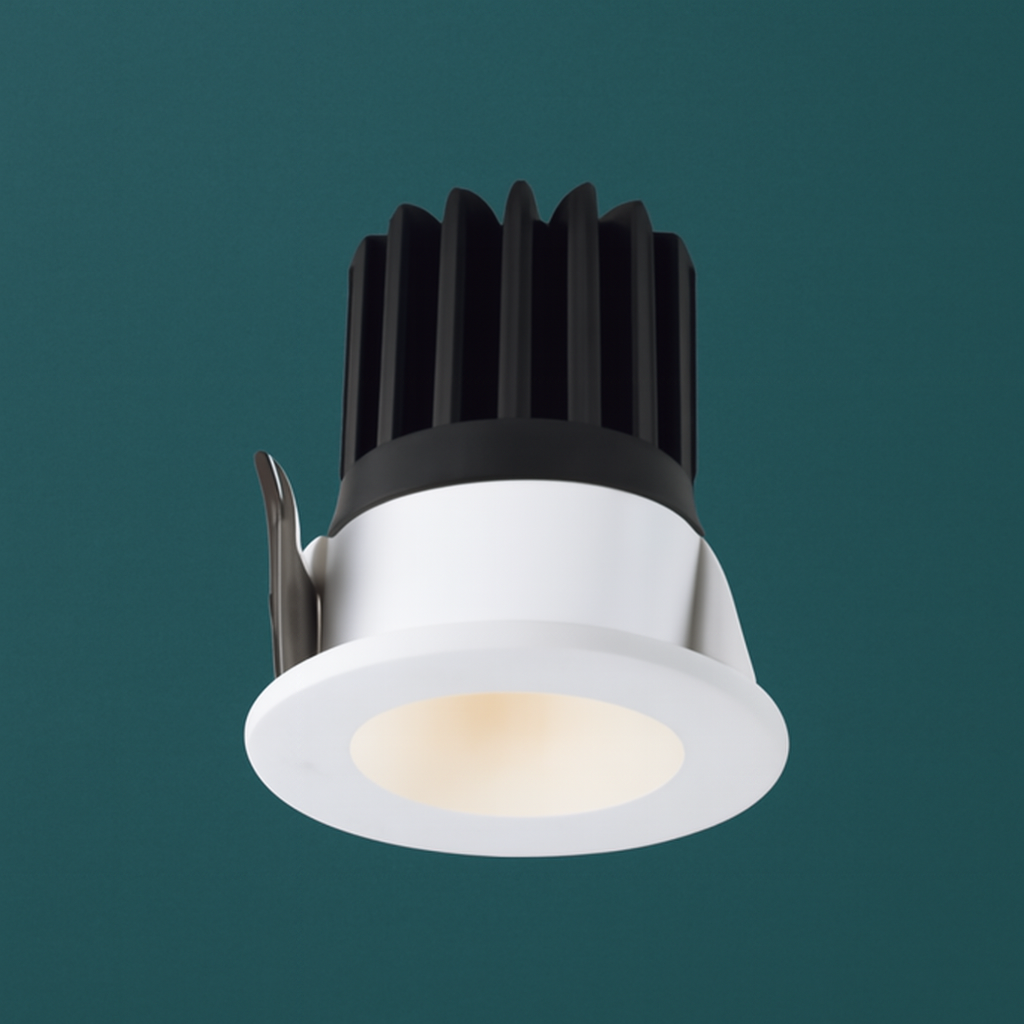

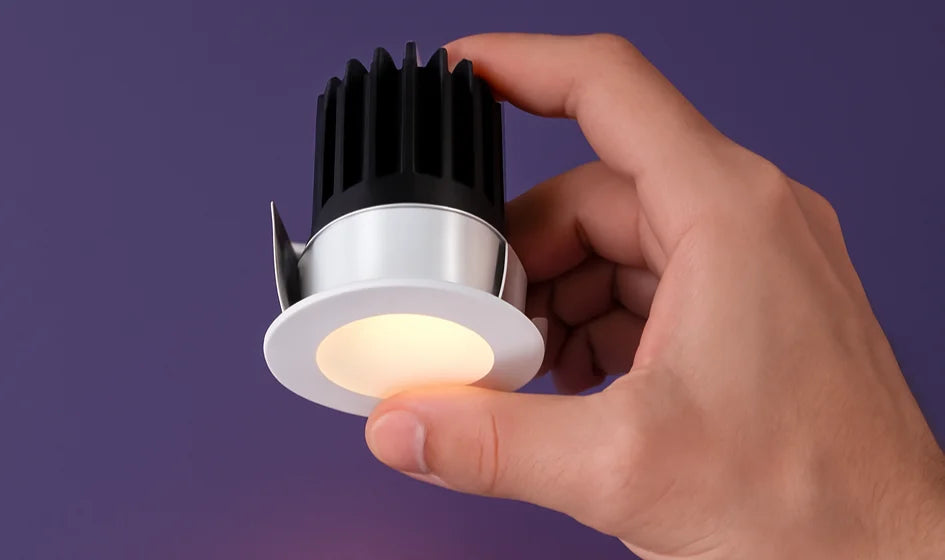

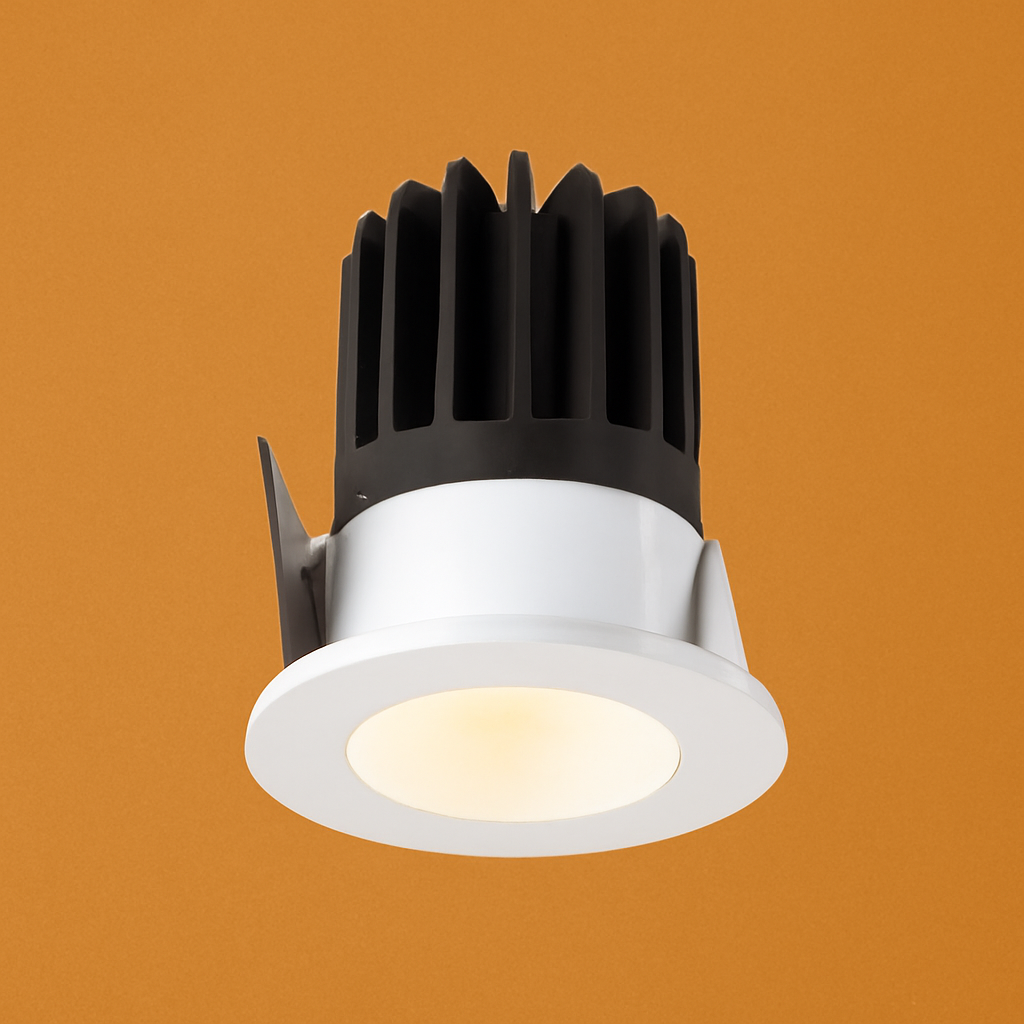

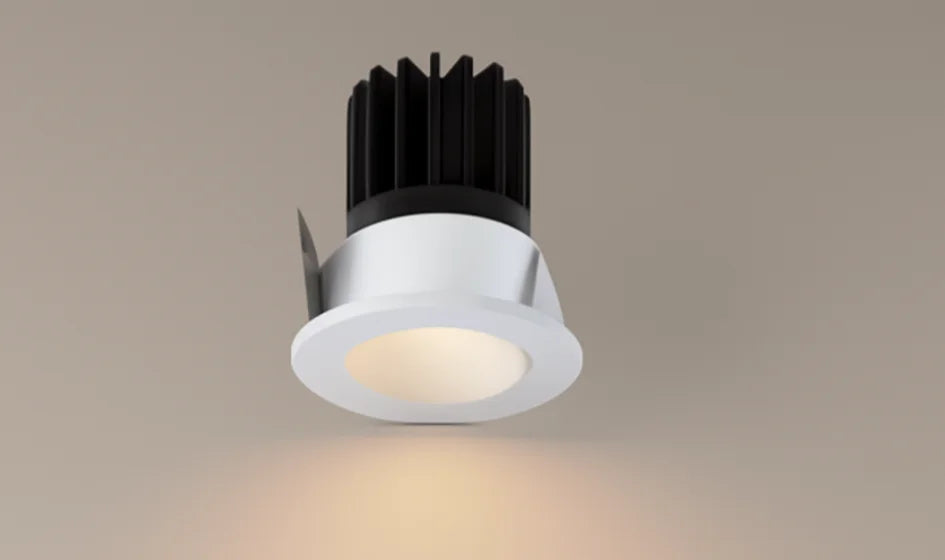

Product Description: D01-065A-A High-Power Bridgelux LED Accent/Downlight Luminaire (Circlighting)

The Circlighting D01-065A-A represents a new tier in performance within the D01 series, offering a robust 13W LED luminaire designed for powerful and precise illumination. This model features a premium Bridgelux LED chip, delivering significant light output from a compact, discreet form factor. With an expanded range of beam angle options, including a wide 60° flood, and versatile color temperature choices, the D01-065A-A provides exceptional lighting control, making it ideal for both intense accentuation and effective general downlighting in various architectural settings. Its durable construction and array of finish options ensure seamless integration into diverse interior designs.

Key Features & Specifications:

• Model: D01-065A-A

• Dimensions:

  • Diameter: $\varnothing$75mm (approximately 2.95 inches)

  • Height: 77mm (approximately 3.03 inches)

  • Cutout/Mounting Diameter: 65mm (approximately 2.56 inches - ideal for recessed installations)

• Power: 13W (Offers significantly higher light output for demanding illumination needs)

• Input: DC36V, 350mA (Requires a dedicated constant current LED driver)

• LED Source: Bridgelux (Utilizes high-quality LED technology from a reputable manufacturer)

• Color Temperature (CCT): Available in 2700K (Warm White) / 3000K (Soft White) / 4000K (Cool White) / 5000K (Daylight)

• Optics (Beam Angles):

  • 15° (Narrow Spot)

  • 25° (Spot)

  • 38° (Narrow Flood)

  • 60° (Wide Flood)

  • (Provides comprehensive versatility from accent to wider illumination)

• Lifespan: 50,000 hours, ensuring long-term reliability and reduced maintenance needs.

• Finishes: Available in White, Black, and Silver to complement various design schemes.

• LED Type: Likely utilizes COB (Chip-on-Board) LED technology to achieve high light density and precise beam control from its compact size.

Benefits & Applications:

• High-Power Illumination: Delivers substantial light output, making it suitable for both intense accent lighting and effective general illumination in medium to high ceiling applications.

• Versatile Light Distribution: The broad range of beam angles allows for precise highlighting, wall washing, or more uniform ambient lighting.

• Compact & Discreet Design: Despite its higher power, the luminaire maintains a sleek, recessed profile, integrating seamlessly into sophisticated interior designs.

• Premium Light Quality: Bridgelux LED ensures excellent light consistency, clarity, and potentially high Color Rendering Index (CRI, though not explicitly stated for this model, is typical for premium LEDs).

• Long-Term Durability: The extended lifespan significantly reduces the frequency of replacements and overall maintenance costs, offering superior value.

• Adaptable Aesthetics: Multiple CCT options and finish choices provide flexibility to match specific project requirements and interior design palettes.

• Ideal for:

  • High-end retail, boutique, and showroom lighting

  • Museum and gallery illumination

  • Hospitality and upscale residential downlighting

  • Architectural highlighting in commercial spaces

  • Areas requiring flexible lighting solutions from accent to general illumination.
