D01-060B-A

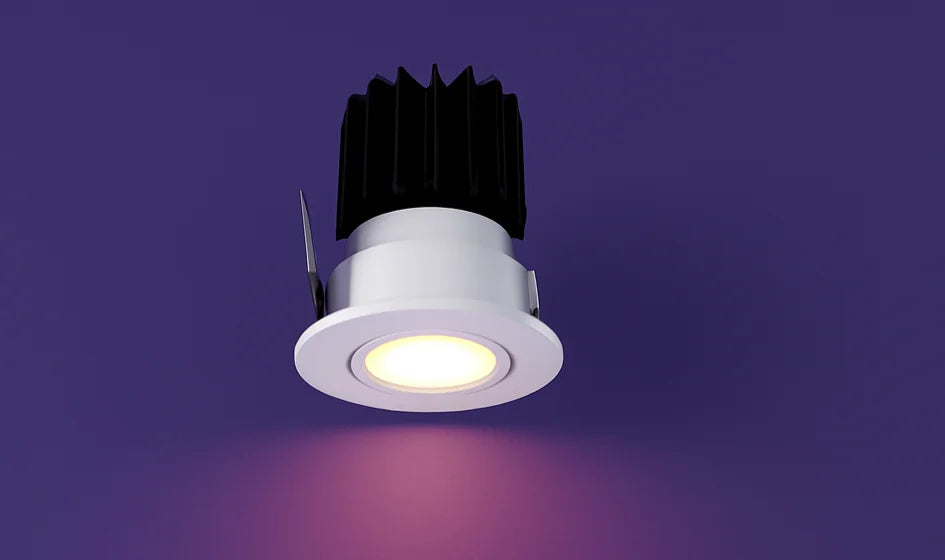

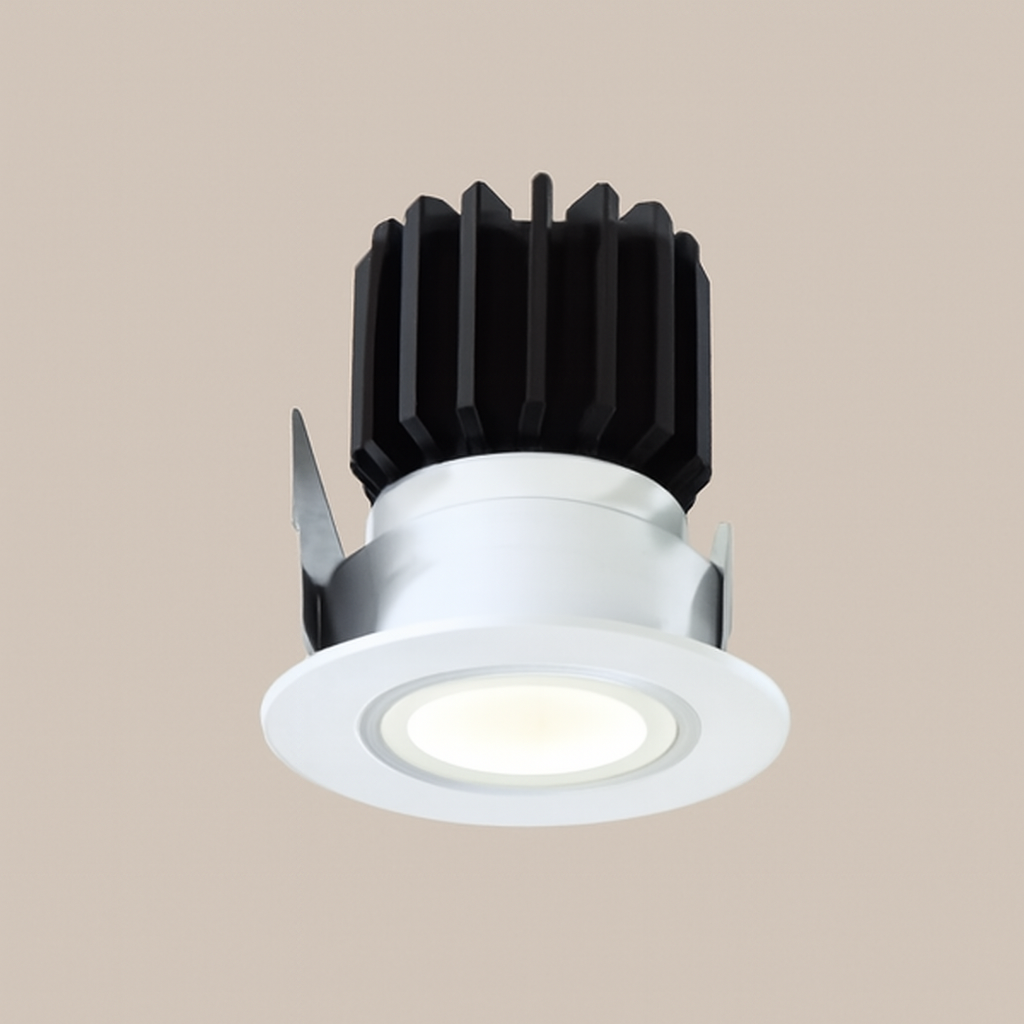

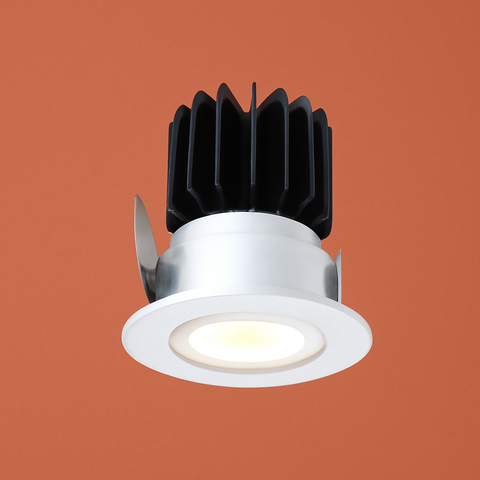

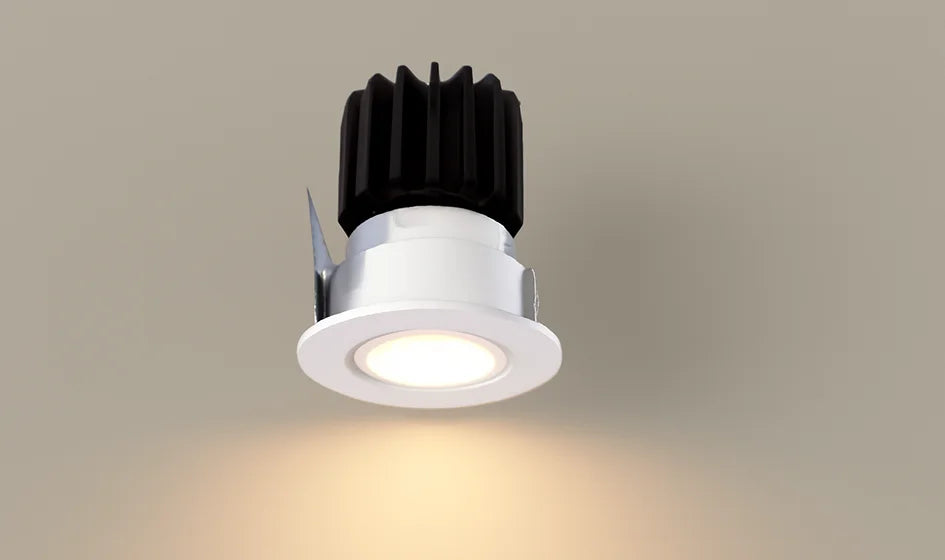

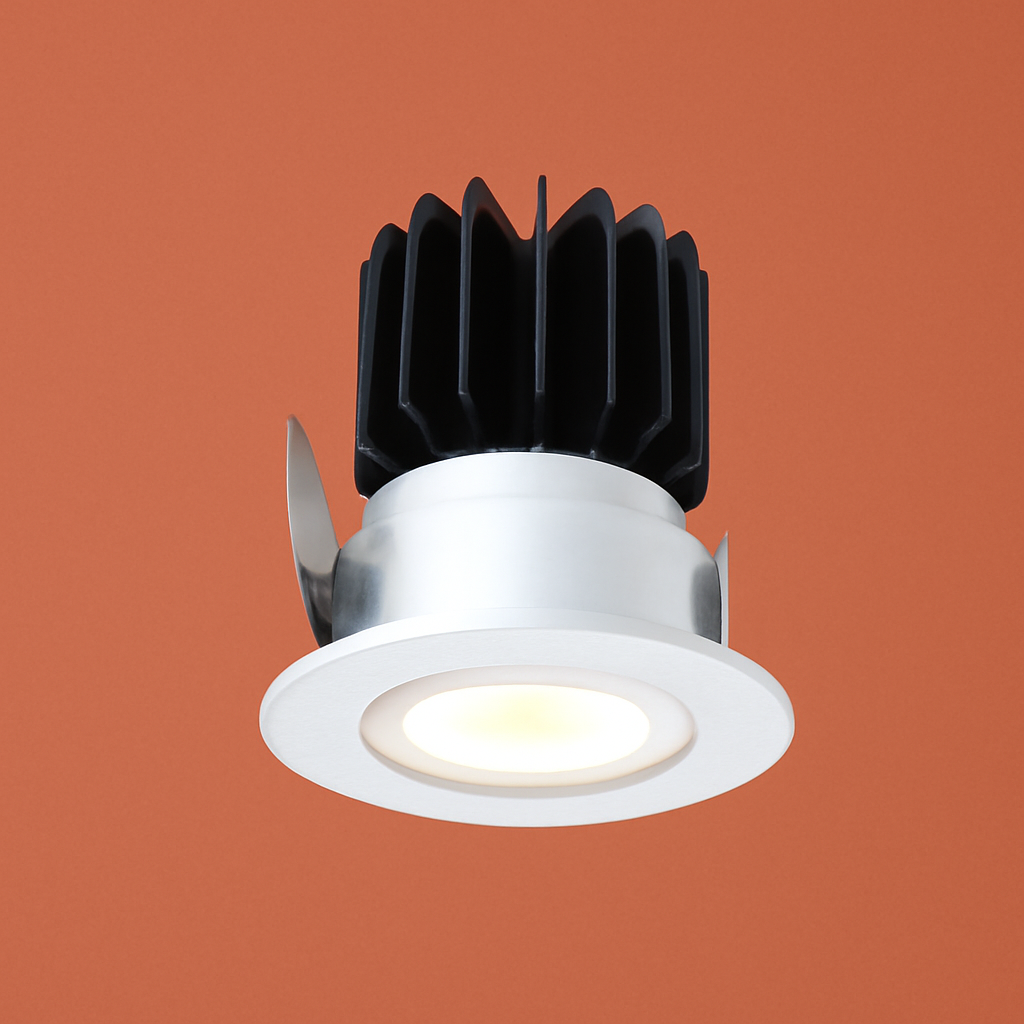

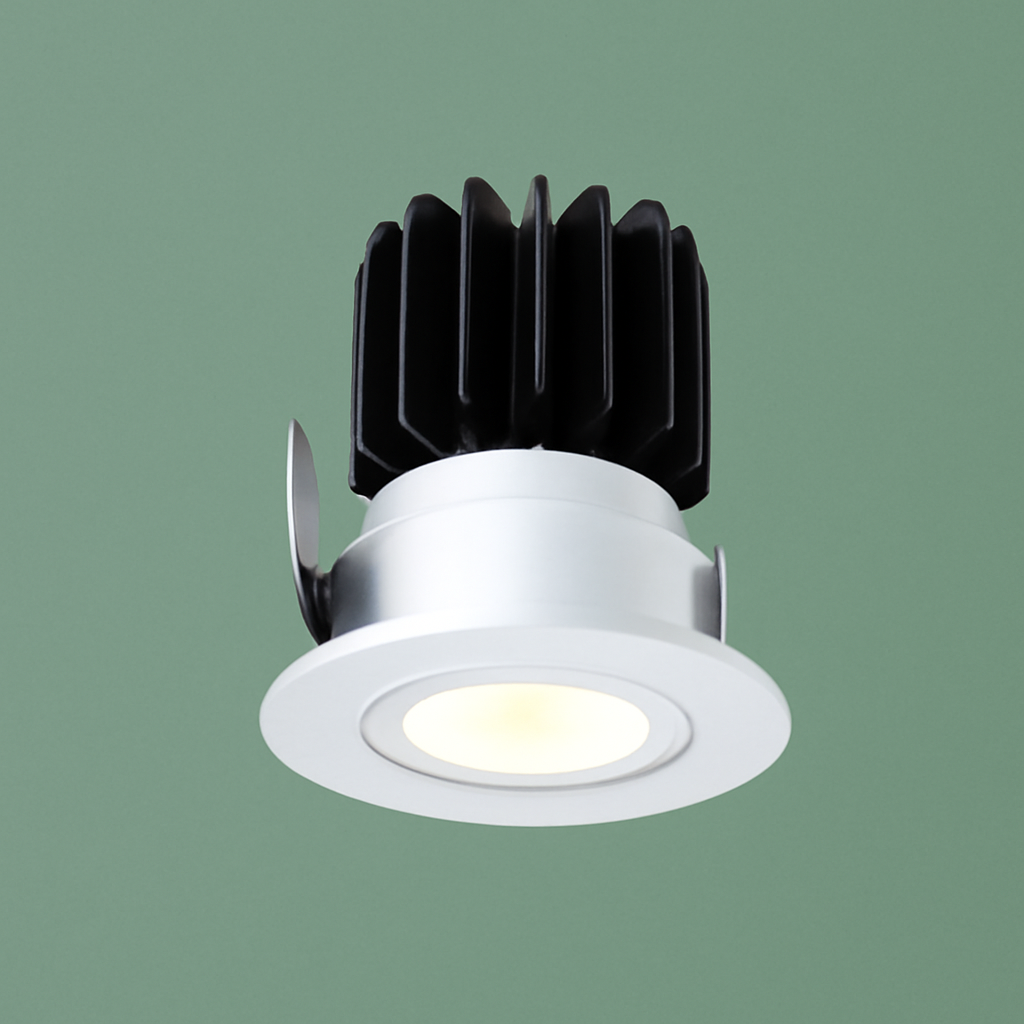

Product Description: D01-060B-A High-Power Bridgelux LED Accent Downlight (Circlighting)

The Circlighting D01-060B-A is a high-performance 9W LED accent downlight, providing powerful and precise illumination for demanding commercial and architectural applications. As part of the D01 series, this fixture features a robust design and utilizes a premium Bridgelux LED chip to deliver substantial light output from a discreet form factor. With a tailored set of precise beam angle options and versatile color temperature choices, the D01-060B-A offers exceptional lighting control, making it ideal for highlighting features with intensity and clarity. Its durable construction and array of finish options ensure seamless integration into diverse interior designs.

Key Features & Specifications:

• Model: D01-060B-A

• Dimensions:

  • Diameter: $\varnothing$70mm (approximately 2.76 inches)

  • Height: 62mm (approximately 2.44 inches)

  • Cutout/Mounting Diameter: 60mm (approximately 2.36 inches - ideal for recessed installations)

• Power: 9W (Provides significant light output for impactful accentuation)

• Input: DC36V, 250mA (Requires a dedicated constant current LED driver)

• LED Source: Bridgelux (Utilizes high-quality LED technology from a reputable manufacturer)

• Color Temperature (CCT): Available in 2700K (Warm White) / 3000K (Soft White) / 4000K (Cool White) / 5000K (Daylight)

• Optics (Beam Angles):

  • 18° (Narrow Spot)

  • 24° (Spot)

  • 34° (Narrow Flood)

  • (Note: Prioritizing the beam angles listed in the detailed dimension string for precise light distribution)

• Lifespan: 50,000 hours, ensuring long-term reliability and reduced maintenance needs.

• Finishes: Available in White, Black, and Silver to complement various design schemes.

• LED Type: Likely utilizes COB (Chip-on-Board) LED technology to achieve high light density and precise beam control from a compact size.

Benefits & Applications:

• Powerful Accentuation: Delivers ample light output to effectively highlight objects, architectural details, or specific zones in larger spaces.

• Precise & Controlled Illumination: The specialized beam angle options enable highly accurate light placement and intense accentuation, minimizing spill light.

• Discreet Integration: Despite its higher power, the luminaire maintains a compact and discreet recessed profile, ideal for sophisticated interior designs.

• High-Quality Light Output: Bridgelux LED ensures excellent light consistency, clarity, and potentially high Color Rendering Index (CRI, though not explicitly stated for this model, is typical for premium LEDs).

• Long-Term Value: The extended lifespan significantly reduces the frequency of replacements and overall maintenance costs.

• Versatile Design: Multiple CCT options and finish choices offer flexibility to match specific project requirements and design palettes.

• Ideal for:

  • High-end retail, boutique, and showroom lighting

  • Museum and gallery accentuation

  • Hospitality and residential accent lighting

  • Task lighting requiring focused, brighter illumination

  • Architectural highlighting in commercial spaces
