D01-055B-A

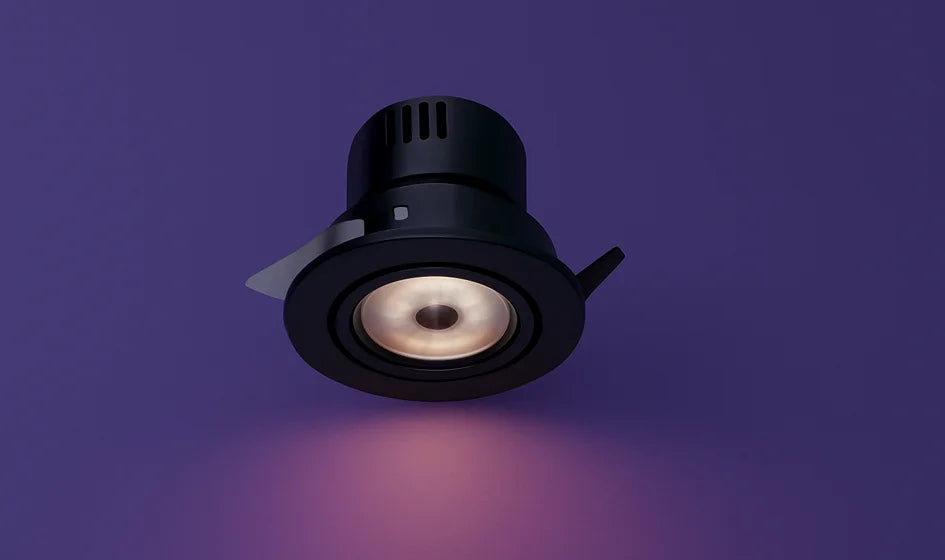

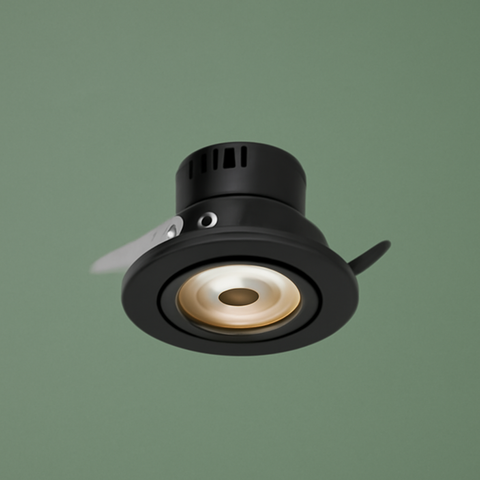

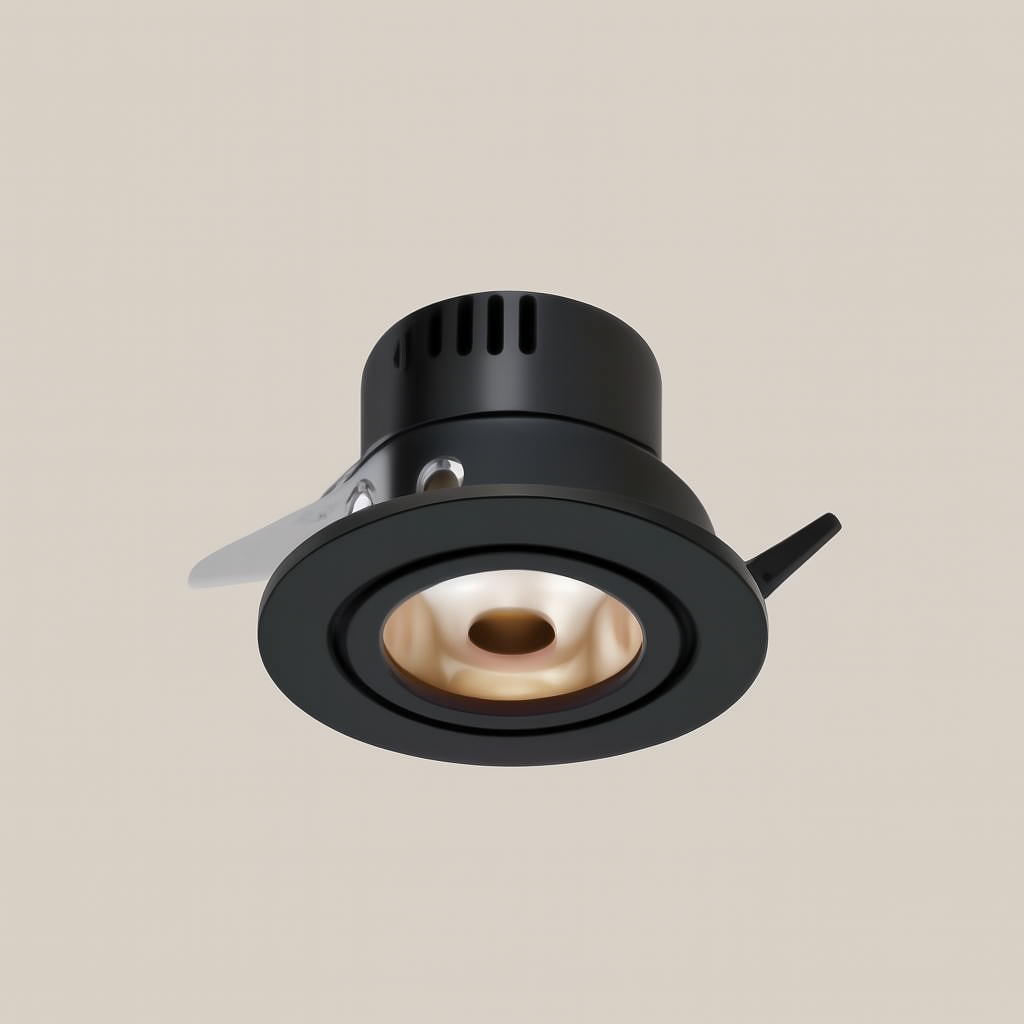

Product Description: D01-055B-A High-Output Bridgelux LED Accent Luminaire (Circlighting)

The Circlighting D01-055B-A is an advanced 5W LED accent luminaire, designed to deliver high-quality, precise, and impactful illumination from a compact form factor. Featuring a premium Bridgelux LED chip and offering a specialized set of beam angle options, this miniature fixture is engineered for highlighting specific features, artworks, or merchandise with enhanced brightness and clarity. Its robust construction and selection of popular finishes ensure versatile application and seamless integration into a wide array of interior design schemes.

Key Features & Specifications:

• Model: D01-055B-A

• Dimensions:

  • Diameter: $\varnothing$60mm (approximately 2.36 inches)

  • Height: 37.5mm (approximately 1.48 inches)

  • Cutout/Mounting Diameter: 55mm (approximately 2.17 inches - ideal for recessed installations)

• Power: 5W (Note: There was a minor discrepancy in the provided data; prioritizing the 'Dimension' string's 5W value for performance)

• Input: DC9V, 500mA (Requires a dedicated constant current LED driver for optimal performance)

• LED Source: Bridgelux (Utilizes high-quality LED technology from a reputable manufacturer)

• Color Temperature (CCT): Available in 2700K (Warm White) / 3000K (Soft White) / 4000K (Cool White) / 5000K (Daylight)

• Optics (Beam Angles):

  • 18° (Narrow Spot)

  • 24° (Spot)

  • 34° (Narrow Flood)

  • (Optimized for precise and concentrated light distribution, minimizing spill light)

• Lifespan: 50,000 hours, ensuring long-term reliability and reduced maintenance needs.

• Finishes: Available in White, Black, and Silver to complement various design aesthetics.

• LED Type: Likely utilizes COB (Chip-on-Board) LED technology to achieve the precise beam control and lumen output from its compact size.

Benefits & Applications:

• Enhanced Illumination: The 5W power output provides a brighter, more impactful light ideal for effectively accentuating objects or areas.

• Precision Lighting: Specialized beam angles allow for highly accurate light placement and intense highlighting, creating visual interest.

• Discreet Integration: Its compact dimensions and recessed design ensure minimal visual intrusion, maintaining a clean architectural aesthetic.

• High-Quality Light Output: Bridgelux LED ensures excellent light consistency, clarity, and potentially high Color Rendering Index (CRI, though not explicitly stated for this model, is typical for premium LEDs).

• Long-Term Value: The extended lifespan significantly reduces the frequency of replacements and overall maintenance costs.

• Versatile Design: Multiple CCT options and finish choices offer flexibility to match specific project requirements and design palettes.

• Ideal for:

  • Retail displays and showcases

  • Museum and gallery lighting for exhibits and artworks

  • Architectural accentuation in commercial and high-end residential spaces

  • Task lighting requiring focused brightness

  • Specialty lighting for niche areas, cabinets, or shelving.
