ALR70-24

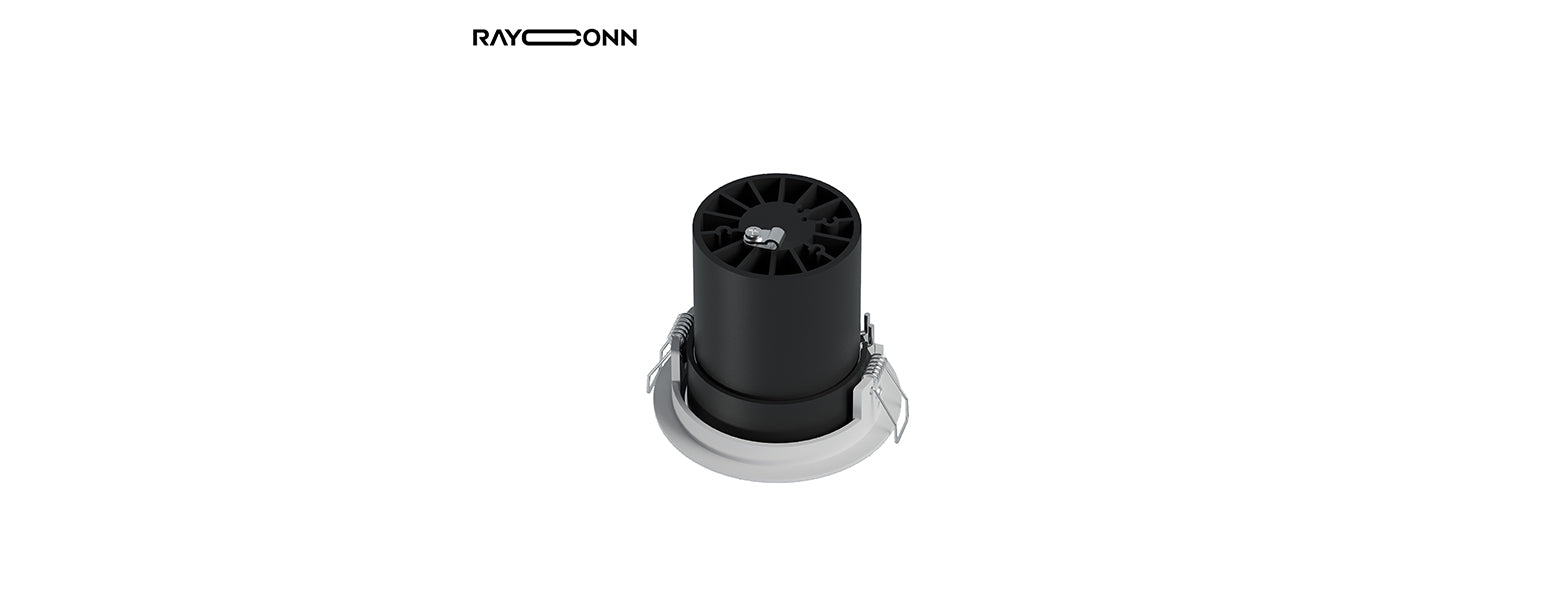

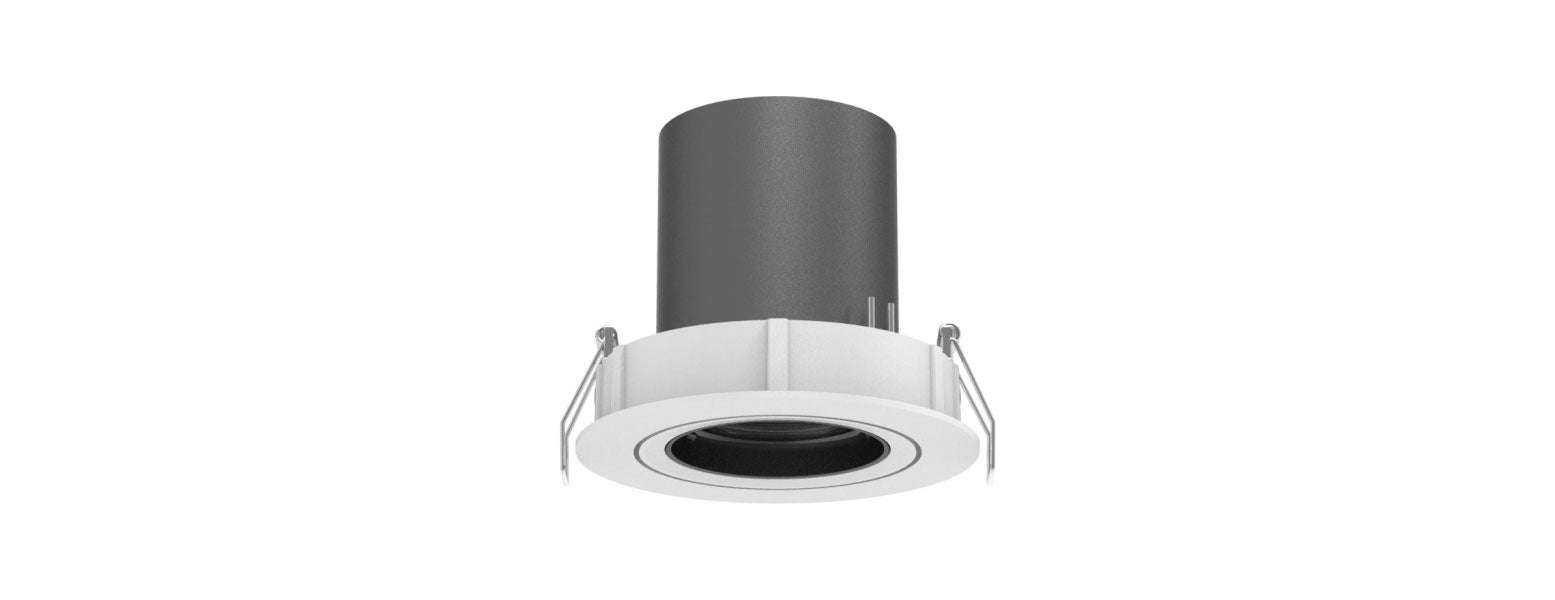

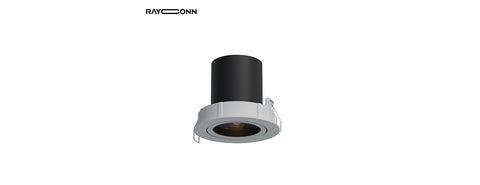

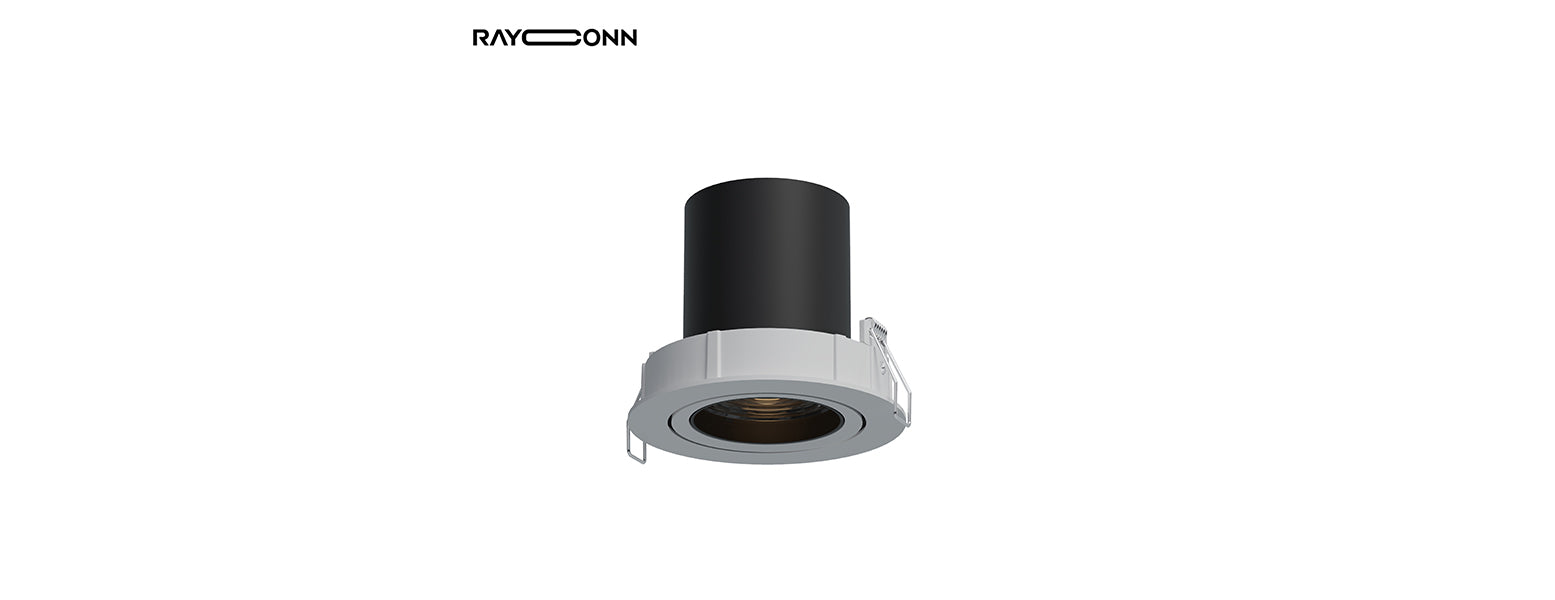

ALR70-24 Architectural LED Luminaire

The ALR70-24 is a versatile and high-performance architectural LED luminaire, designed to provide precise and adaptable lighting for various indoor commercial and residential applications. This fixture combines a high-quality COB LED light source with multiple dimming options and extensive adjustability, making it a flexible lighting solution.

Key Features:

• Product Number: ALR70-24
• Input Voltage: 220-240V AC
• Dimming Options:
  • On/Off
  • Triac (Phase-cut dimming)
  • 1-10V
  • DALI (Digital Addressable Lighting Interface)
• Light Source: COB LED
• Luminaire Lifetime: 50,000 hours (L80-B10 at Ta 25°C), ensuring long-term reliability and significantly reduced maintenance costs.

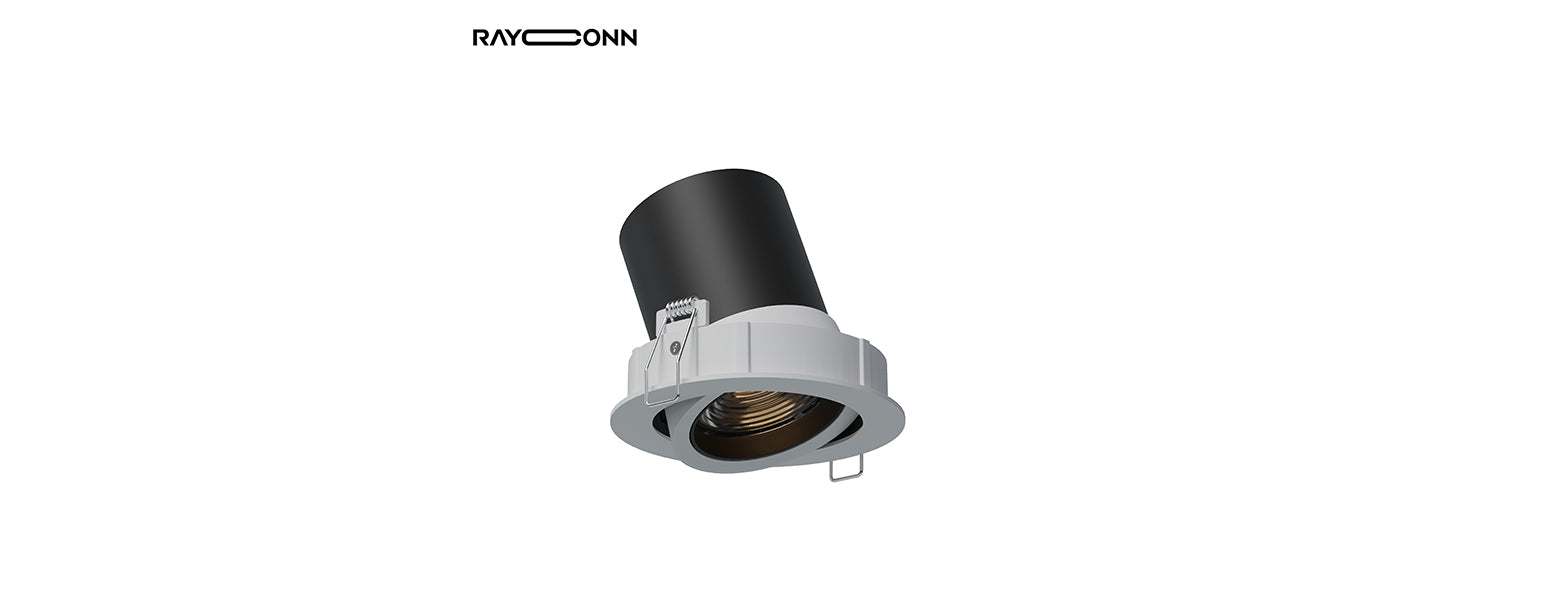

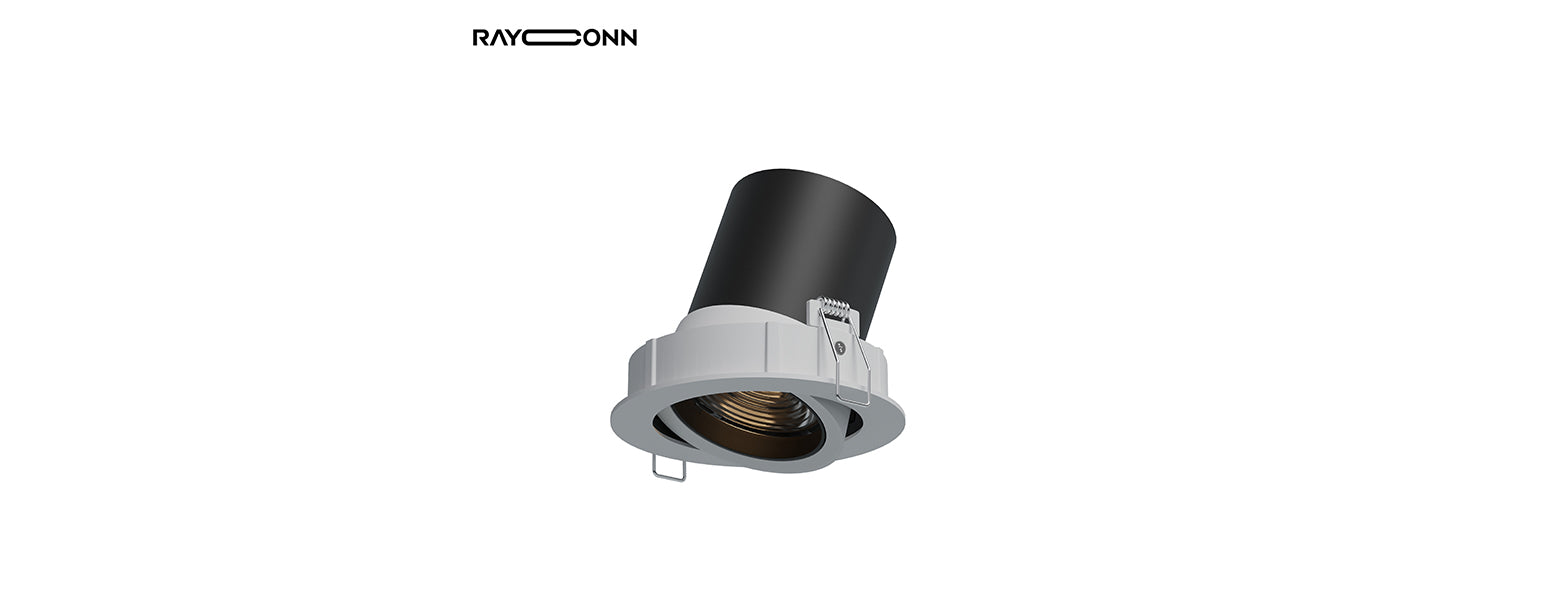

• Rotation Angle: 355 degrees, offering extensive directional flexibility for precise light placement.
• Tilting Angle: 30 degrees, allowing for targeted illumination.
• IP Rating: IP20, suitable for dry indoor environments.
• Working Temperature: -5°C to +30°C
• Storage Temperature: -20°C to +50°C
• Material: High-quality Aluminium, providing durability and efficient heat dissipation.
• Fitting Colors:
  • 9016 Sandy White
  • 9017 Sandy Black

Packaging Information:

• Net Weight (N.W.) per lamp: 0.76 kg
• Gross Weight (G.W.) per Master Carton: 18 kg
• Master Carton Dimensions: 720 x 295 x 328 mm
• Quantity per Master Carton: 20 PCS

The ALR70-24 luminaire is an excellent choice for projects requiring flexible, high-performance, and durable lighting with advanced dimming capabilities and aesthetic versatility.
