2X-ALT35-L6

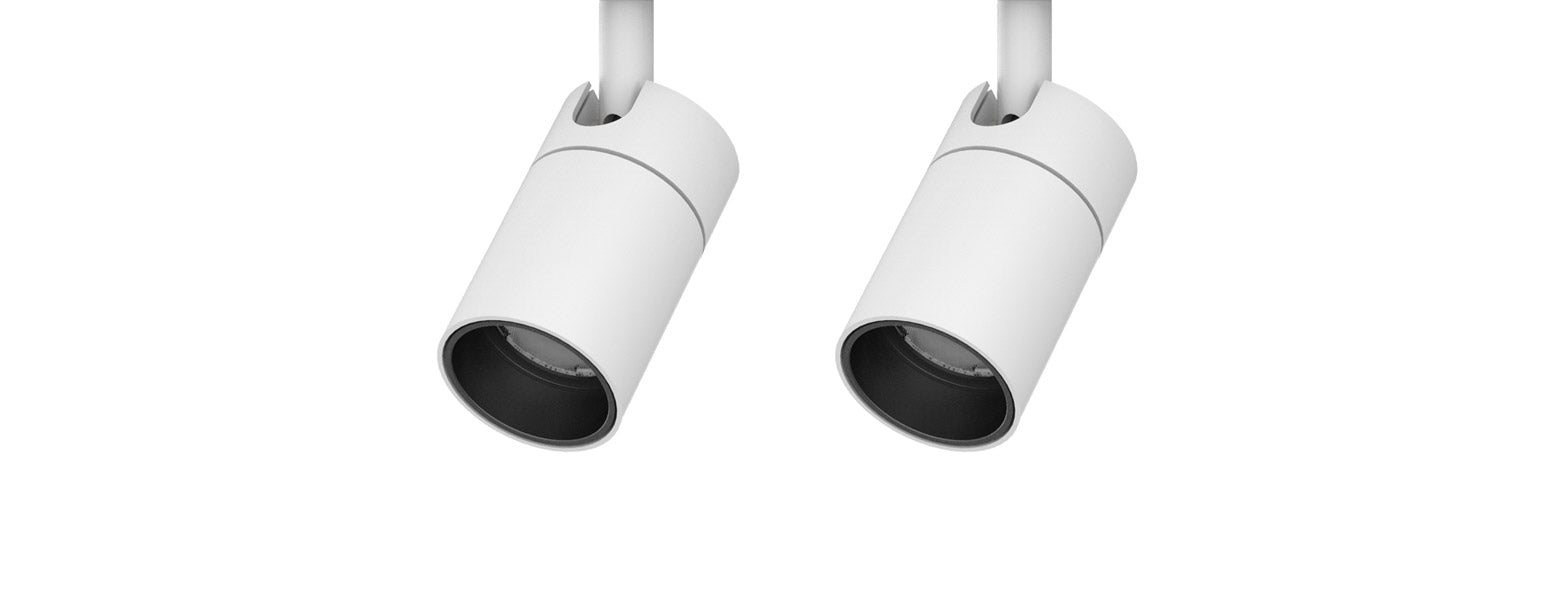

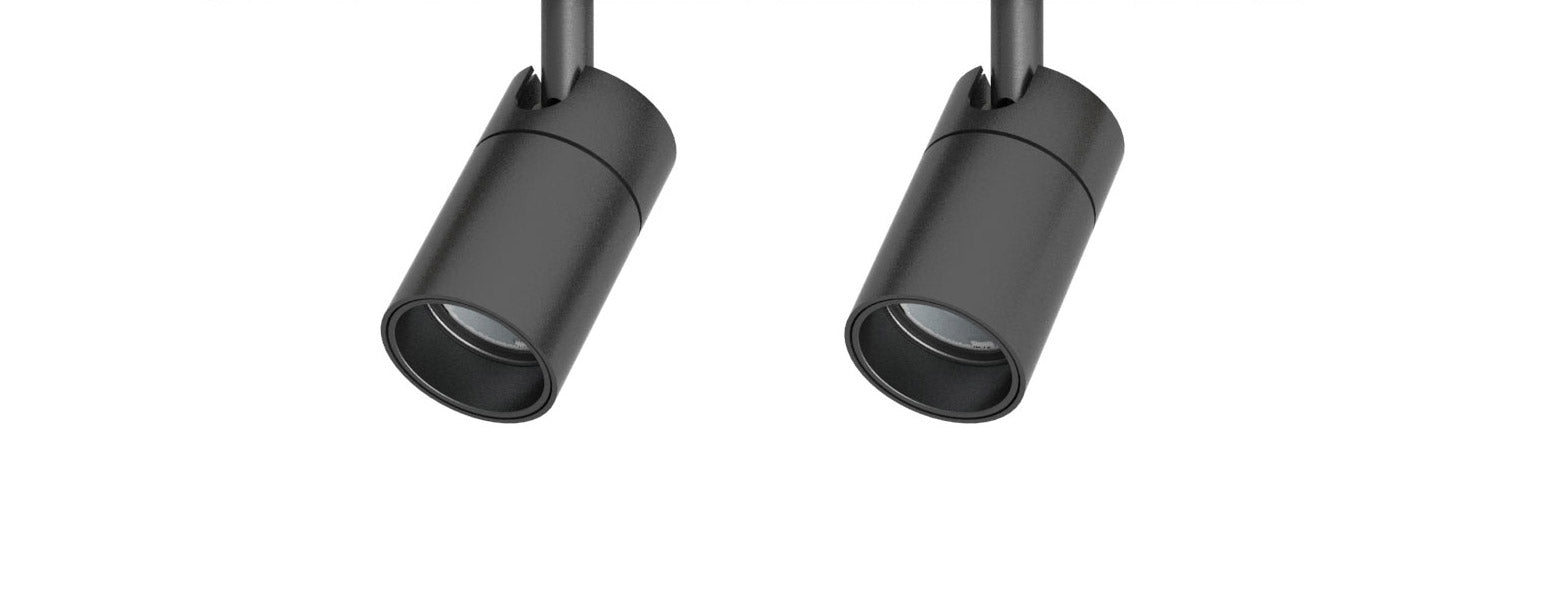

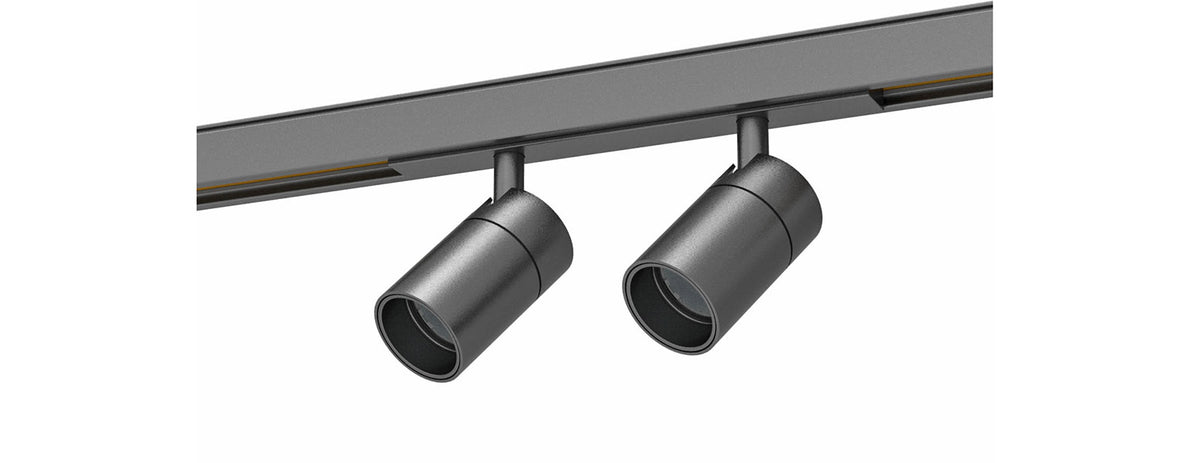

2X-ALT35-L6 48V Track Mounted LED Luminaire (ALTRACK System)

The 2X-ALT35-L6 is a versatile and high-performance luminaire within the innovative ALTRACK system, designed to offer a suitable lighting solution for a diverse range of applications. Whether for shop displays, private homes, restaurants, hotels, or art exhibitions, the flexibility and multi-functionality of the ALTRACK system, including this 2X-ALT35-L6 model, make it an indispensable tool for architects and designers to meet evolving lighting demands in various spaces.

Key Features:

• Product Number: 2X-ALT35-L6
• Track System Compatibility: 4-wire, ensuring robust power and control capabilities for professional installations.
• Input Voltage: 48V DC, providing a safe and efficient power solution ideal for track-based lighting systems.
• Dimming Options:
  • On/Off
  • 1-10V
  • DALI (Digital Addressable Lighting Interface) - offers advanced control for integrated lighting systems.
• Light Source: COB LED, delivering high-quality, focused, and efficient illumination.
• Luminaire Lifetime: 50,000 hours (L80-B10 at Ta 25°C), guaranteeing exceptional longevity, minimal maintenance, and consistent performance over time.
• Rotation Angle: 350 degrees, providing extensive horizontal aiming flexibility to direct light precisely where needed.
• Tilting Angle: 90 degrees, allowing for precise vertical adjustment for accent, task, or wall-washing applications.
• IP Rating: IP20, suitable for dry indoor environments.
• Working Temperature: -5°C to +30°C
• Storage Temperature: -20°C to +50°C
• Material: High-quality Aluminium, ensuring durability and efficient thermal management for sustained performance.
• Fitting Colors:
  • 9016 Sandy White
  • 9017 Sandy Black

Packaging Information:

• Net Weight (N.W.) per lamp: 0.4 kg
• Gross Weight (G.W.) per Master Carton: 15 kg
• Master Carton Dimensions: 450 x 360 x 300 mm
• Quantity per Carton (PCS): 30

The 2X-ALT35-L6 is an exemplary component of the ALTRACK system, offering architects and designers a highly adaptable, reliable, and aesthetically pleasing lighting solution for both general and accent lighting requirements. Its versatile dimming options and extensive adjustability provide unmatched flexibility for creative lighting schemes
