150W-120W-90W

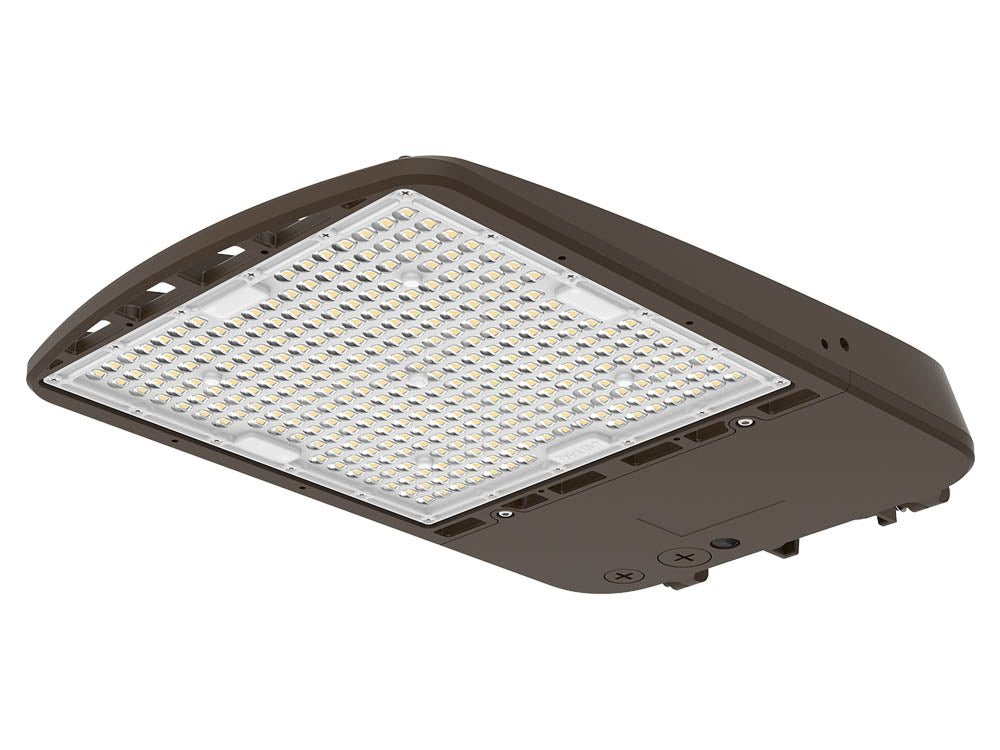

Product Description: Ultra-High Efficacy Tunable Wattage LED Street/Area Luminaires (Circlighting Unnamed Series)

This series of Circlighting LED Luminaires represents a cutting-edge solution for street lighting, area lighting, and parking lot illumination, offering exceptional performance, adaptability, and energy efficiency. Designed for robust outdoor use with an IP65 rating, these fixtures deliver powerful illumination with an outstanding luminous efficacy of 150 lumens per watt. Each model features multiple field-selectable wattage options, a range of IESNA light distribution types (Type II, III, IV, V), and selectable color temperatures, providing unparalleled flexibility for optimizing light coverage and quality in diverse outdoor environments.

Available Models & Specifications:

(Note: Specific model numbers and physical dimensions for these luminaires are not provided.)

• Variant 1:

  • Power (Tunable Wattage): 150W / 120W / 90W (Field-selectable)

  • Lumen Output (Approx.): >13,500LM (90W) to >22,500LM (150W) (calculated from 150LM/W)

  • Luminous Efficacy: 150LM/W

  • Light Distribution Types: II / III / IV / V (IESNA types, for various area lighting patterns)

  • CRI (Color Rendering Index): >80

  • IP Rating: IP65

  • Selectable CCT: 3500K (Neutral White) / 4000K (Cool White) / 5000K (Daylight)

• Variant 2:

  • Power (Tunable Wattage): 240W / 200W / 150W (Field-selectable)

  • Lumen Output (Approx.): >22,500LM (150W) to >36,000LM (240W) (calculated from 150LM/W)

  • Luminous Efficacy: 150LM/W

  • Light Distribution Types: II / III / IV / V (IESNA types)

  • CRI: >80

  • IP Rating: IP65

  • Selectable CCT: 3500K / 4000K / 5000K (Consistent with series features)

• Variant 3:

  • Power (Tunable Wattage): 300W / 240W / 200W (Field-selectable)

  • Lumen Output (Approx.): >30,000LM (200W) to >45,000LM (300W) (calculated from 150LM/W)

  • Luminous Efficacy: 150LM/W

  • Light Distribution Types: II / III / IV / V (IESNA types)

  • CRI: >80

  • IP Rating: IP65

  • Selectable CCT: 3500K / 4000K / 5000K (Consistent with series features)

Key Features (Common to Series):

• Ultra-High Luminous Efficacy: Achieves an exceptional 150 lumens per watt, ensuring maximum light output for minimal energy consumption, leading to substantial operational cost savings.

• Field-Selectable Wattage: Offers three distinct power settings per model, allowing on-site adjustment of brightness and energy usage to precisely match project requirements.

• Versatile Light Distribution (IESNA Types II/III/IV/V): Provides a range of standardized light patterns, enabling optimized illumination for different road widths, pathways, and area shapes.

• Wet Location & Dust-Tight (IP65): The robust IP65 rating signifies complete protection against dust ingress and resistance to low-pressure water jets, making these luminaires ideal for outdoor environments.

• Multi-Selectable Color Temperature (CCT): Offers three versatile white light options (3500K Neutral White, 4000K Cool White, and 5000K Daylight), allowing for customization of the lighting ambiance to suit urban, suburban, or industrial settings.

• Good Color Rendering: A CRI of >80 ensures that colors appear natural and clear under illumination, enhancing safety and visibility.

• Advanced LED Technology: Utilizes high-performance LED components for reliable and long-lasting outdoor lighting (specific LED type like SMD or COB is not provided).

Benefits & Applications:

• Exceptional Energy Savings: Achieve substantial reductions in electricity consumption and operating costs, contributing to sustainable infrastructure.

• Optimized Light Coverage: Select the ideal light distribution pattern to ensure efficient and effective illumination for various outdoor layouts.

• Unrivaled Customization: Easily adjust brightness and color temperature on-site to suit specific needs, from enhancing safety to creating a desired aesthetic.

• Robust & Reliable Outdoor Performance: Built to withstand harsh outdoor conditions, ensuring long-term durability and minimal maintenance.

• Ideal for: Street lighting, parking lots, pathways, public squares, general area lighting, industrial outdoor facilities, and other large outdoor spaces requiring high-performance, flexible, and durable illumination.
